Horizontal Air Handling Unit 1500 CFM

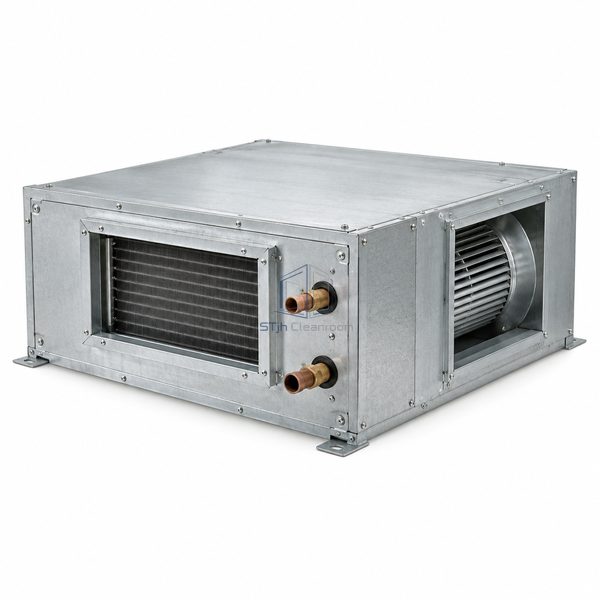

A compact 1500 CFM horizontal AHU measuring 30 x 38 x 25 inches for small controlled-room ceiling or attic plant spaces.

1500 CFM nominal airflow
30 x 38 x 25 inch cabinet
Low horizontal arrangement

Request a Quote Browse Products

Product Introduction

This smallest horizontal cabinet uses a published 30 x 38 x 25 inch envelope. Its low arrangement places the filter, coil and fan along the air path for small ceiling, attic or mezzanine plant locations where vertical cabinet height is more restrictive than horizontal length.

Key Features

Low cabinet height

The 25 inch dimension helps the unit fit into shallow overhead or attic plant zones.

Straight treatment path

Filter, coil and fan components follow a horizontal air path that simplifies duct transitions.

Multiple coil utilities

Chilled water, hot water, DX or steam options allow connection to the available building system.

Technical Parameters

Nominal Airflow	1500 CFM
Cabinet Dimensions	30 x 38 x 25 in
Arrangement	Horizontal
Coil Options	Chilled water, hot water, DX or steam
Casing	Single- or double-wall option
Filter Section	Flat or angled arrangement
Fan Type	Packaged centrifugal or plug-fan selection
Drainage	Condensate pan for cooling duty
Installation	Indoor ceiling, attic or plant-room support
Customization	Coil type, casing and duct orientation can be configured for the intended application and operating environment.

Applications

Small controlled rooms, laboratories, clean support spaces and low-height attic or ceiling plant areas.

Solutions for Your Application

An upright air handler exceeds the available overhead clearance.Use the 25 inch-high horizontal cabinet and distribute required service clearance along its side.

Duct offsets around a compact plant zone create avoidable pressure loss.Align the straight horizontal air path with the main supply and return connections where practical.

Available Options

Coil medium, single- or double-wall casing, filter geometry, fan type, drain-pan material, access side and control package can be selected.

Planning a Horizontal Air Handling Unit 1500 CFM specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
