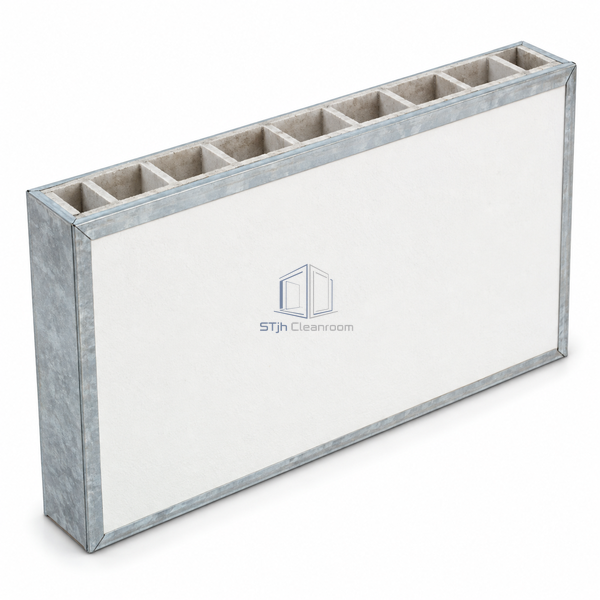

Hollow MgO Cleanroom Sandwich Panel 100 mm Handcrafted Framed

Deep handcrafted hollow-mineral module with a closed perimeter.

Framing surrounds the full module boundary.
Wide cover formats suit larger panel bays.

Request a Quote Browse Products

Product Introduction

A hollow MgO grid is bonded inside a framed metal sandwich. The perimeter gives this individually fabricated panel defined end closures as well as longitudinal connections, supporting custom wall modules.

Key Features

Framing surrounds the full module boundary.
Wide cover formats suit larger panel bays.

Technical Parameters

Core Material	Hollow MgO grid
Panel Thickness	100 mm
Effective Width	980 or 1180 mm
Maximum Length	6000 mm
Frame Type	Cold-drawn metal perimeter
Core Structure	Bonded hollow mineral grid
Production	Handcrafted
Surface Finish	Coated steel faces
Joint Type	Framed tongue-and-groove
Customization	Available based on the application and operating environment.

Applications

Tall modular cleanroom walls
Individually sized partition bays

Solutions for Your Application

Panel ends need protection during transport and positioning.

The closed perimeter retains the mineral grid at the module boundary.

Continuous-strip dimensions do not fit a custom bay.

Handcrafted fabrication allows the module dimensions to follow the layout.

Available Options

Nonstandard panel lengths
Prepared wall openings

Planning a Hollow MgO Cleanroom Sandwich Panel 100 mm Handcrafted Framed specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
