High-Temperature Double-Wall Exhaust Duct DN600 Ceramic-Fibre 760 °C Continuous

Large ceramic-insulated stainless exhaust trunk for high-temperature duty.

Large liner diameter suits combined industrial exhaust volume.
Stainless outer skin encloses the ceramic thermal layer.

Request a Quote Browse Products

Product Introduction

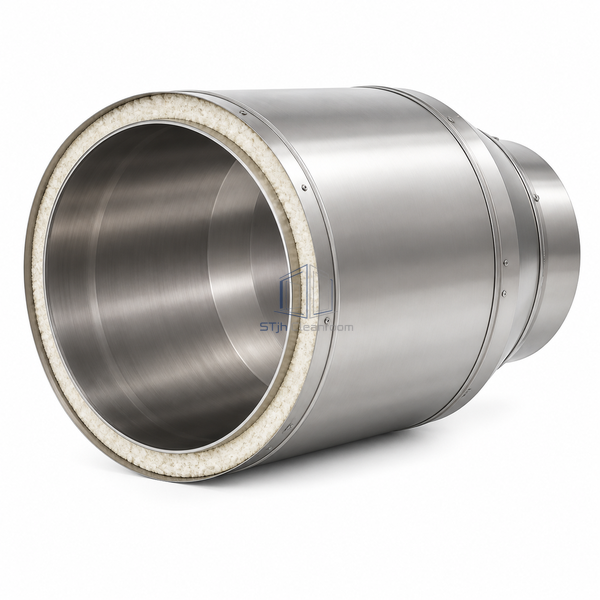

A twenty-four-inch liner forms the broad gas path inside a separate stainless jacket. Compressed ceramic fiber occupies the annular space, creating a large factory-built double-wall section suitable for substantial industrial exhaust routes.

Key Features

Large liner diameter suits combined industrial exhaust volume.
Stainless outer skin encloses the ceramic thermal layer.

Technical Parameters

Liner Diameter	610 mm (24 in)
Inner Steel	Type 444 stainless steel
Inner Wall Thickness	0.889 mm
Outer Steel	Type 304 stainless steel
Outer Wall Thickness	0.635 mm
Insulation Type	Ceramic fiber
Insulation Depth	38.1 mm compressed to 31.75 mm
Continuous Exhaust Temperature	760 °C
End Connection	Approximately 55.9 mm conical overlap
Customization	Available for the intended large exhaust route and environment.

Applications

Large industrial exhaust risers
High-temperature process collection trunks

Solutions for Your Application

A large exhaust route needs both a hot liner and protective exterior.

The concentric stainless walls separate these two functions.

Large-diameter site insulation is difficult to assemble consistently.

The ceramic annulus is incorporated into the factory-built section.

Available Options

Large insulated fittings
Stainless structural support components
