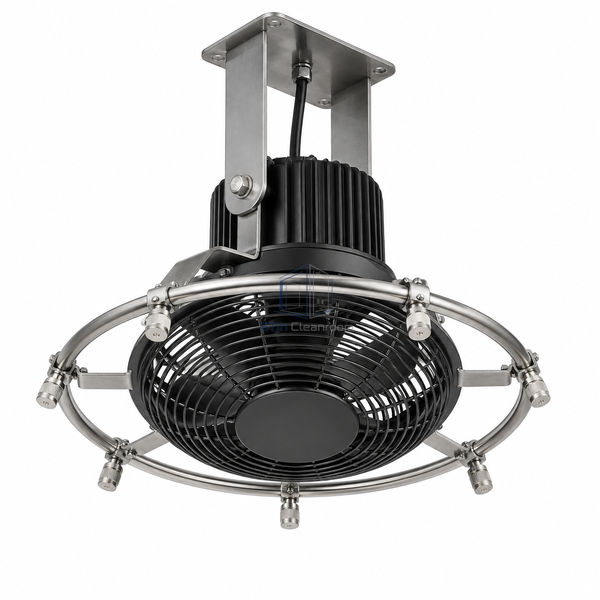

STjh 36 L/h high-pressure mist humidifier head with eight nozzles around a compact fan on white.

STJH-HIGH-PRESSURE-MIST-HUMIDIFIER-36LPH

High-Pressure Mist Humidifier 36 L/h Eight-Nozzle

A compact eight-nozzle ceiling humidifier delivering 10-36 L/h at 35-70 bar with a nominal 26 W distribution fan.

Eight-nozzle ring
10-36 L/h output
35-70 bar working pressure

Request a Quote Browse Products

Product Introduction

This standard ceiling head arranges eight nozzles around a compact fan to disperse 10-36 L/h of high-pressure mist. The 26 W fan supports medium industrial clean zones with normal ceiling height, provided the water and control system prevents visible droplet carryover.

Key Features

Distributed eight-point atomization

Eight nozzles divide water output around the fan instead of concentrating mist at one discharge.

Compact ceiling head

The 26 W fan assembly places humidification near the occupied air volume without a large duct section.

Adjustable output band

Water staging can match the 10-36 L/h range to current room humidity demand.

Technical Parameters

Nozzle Quantity	8
Mist Output	10-36 L/h
Working Pressure	35-70 bar
Fan Power	26 W nominal
Installation	Ceiling-mounted distribution head
Water Supply	Treated high-pressure water
Atomization	Fine-pressure nozzles
Control	Humidity-demand staging
Application Height	Normal industrial ceiling zones
Customization	Nozzle flow, controls and water-treatment interface can be configured for the intended application and operating environment.

Applications

Medium clean manufacturing rooms, production support zones, storage areas and controlled industrial spaces needing direct mist distribution.

Solutions for Your Application

Large droplets could settle on equipment instead of evaporating.Maintain the specified pressure and locate the head where temperature, airflow and absorption distance support complete evaporation.

A fixed full-output head may overshoot humidity at partial load.Stage water delivery within the 10-36 L/h range from a representative humidity sensor.

Available Options

Nozzle size, head quantity, high-pressure pump interface, water treatment, zone valves, humidity sensors and safety drainage can be selected.
