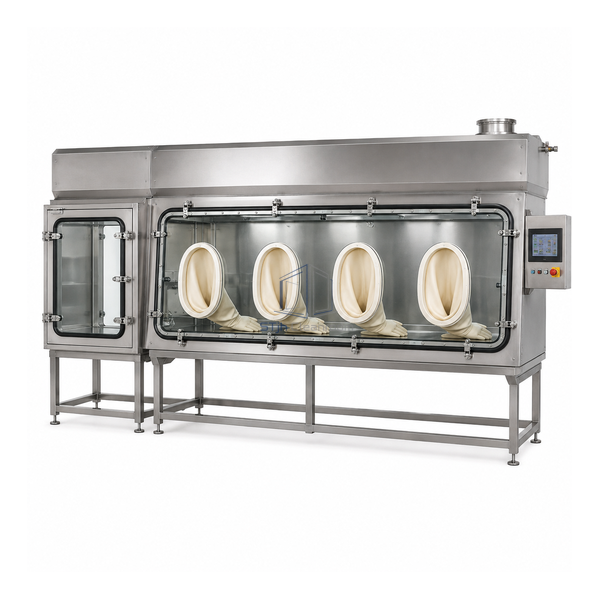

STjh 2000 mm high-potency containment isolator with four cream gloves across its extended chamber on white

STJH-HIGH-POTENCY-CONTAINMENT-ISOLATOR-2000-4G

High-Potency Containment Isolator 2000 mm Four-Glove

The largest retained high-potency isolator, with four glove positions and a 2000 mm chamber for extended dispensing workflows.

2000 mm internal chamber
Four manipulation positions
40 m³/h normal exhaust

Request a Quote Browse Products

Product Introduction

This model provides the maximum standard process width in the family. Four glove ports span a 2000 mm chamber, allowing equipment, incoming material and discharge steps to be separated along the enclosure; normal-run exhaust rises to 40 m³/h for the larger volume.

Key Features

Extended process sequence

Four reach positions can support weighing, subdivision, packaging and output within one negative-pressure barrier.

Largest retained envelope

The 2790 mm width with a pass chamber accommodates equipment that cannot fit the shorter models.

Contained exhaust service

Double H14 push-push filter stages support a planned contained replacement approach.

Technical Parameters

External Dimensions with One Pass Chamber	2790 x 924 x 2275 mm
Internal Process Chamber	2000 x 633 x 842 mm
Glove Ports	4 oval ports, 200 x 300 mm
Chamber Pressure	Negative
Airflow Pattern	Turbulent flow, more than 30 air changes per hour
Normal-Run Exhaust	40 m³/h at 300 Pa
Breach Exhaust	100 m³/h at 900 Pa
Exhaust Filtration	Double-stage H14 push-push, nominal 99.995% at 0.3 µm MPPS
Internal Chamber	4.0 mm 316L stainless steel, Ra ≤ 0.40 µm
Customization	Process equipment, transfer ports and chamber services can be configured for the extended high-potency workflow.

Applications

Large-batch HPAPI weighing, multi-step dispensing and extended contained preparation requiring four glove-working positions.

Solutions for Your Application

Several process steps cannot be arranged safely within a short chamber.Use the four-glove work zone to separate equipment and move material through a defined sequence.

The long enclosure must fit both the room and exhaust system.Check the 2790 mm width and plan for the published normal and breach exhaust duties before layout release.

Available Options

Multiple transfer devices, integrated weighing equipment, wash accessories and process-service penetrations can be arranged for the full sequence.

Planning a High-Potency Containment Isolator 2000 mm Four-Glove specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
