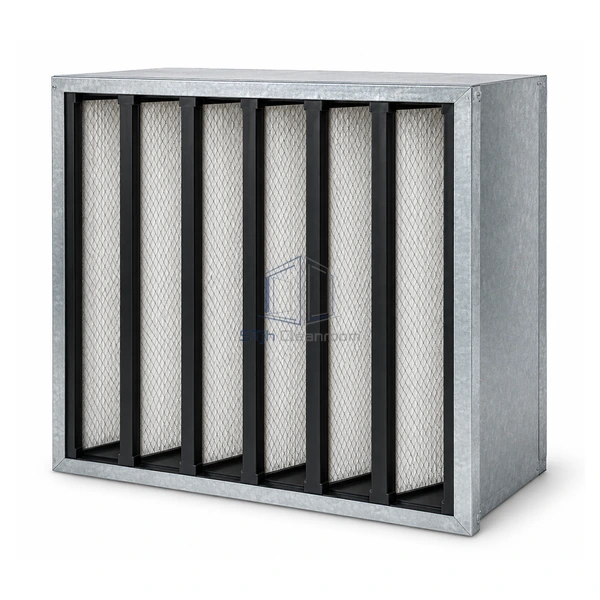

STjh 1437 CFM high-capacity H13 HEPA filter main product view

STJH-HIGH-CAPACITY-HEPA-H13-1437CFM

High-Capacity HEPA Filter 1437 CFM H13

A 24-inch H13 V-bank selection for 1437 cfm where moderate capacity and lower element mass are preferred.

1437 cfm rating
24 x 24 x 11.5 in size
H13 V-bank construction

Request a Quote Browse Products

Product Introduction

This 24 x 24 x 11.5 in H13 V-bank uses a moderate internal media-area selection to deliver 1437 cfm at approximately 1.0 in. w.g. initial resistance. It provides a practical standard-capacity point for critical-air housings that do not need the 1908 or 2294 cfm alternatives. The anodized aluminum enclosure protects multiple microglass mini-pleat packs during AHU changeout.

Key Features

Moderate airflow selection

The 1437 cfm duty avoids specifying the heaviest media-area option when the system demand is lower.

Deep-bank particulate capacity

Multiple V-shaped packs provide more loading surface than a conventional flat HEPA box.

Existing-housing compatibility

The nominal 24-inch face and 11.5-inch depth target standard full-size critical-filter cells.

Technical Parameters

Nominal Size	24 x 24 x 11.5 in
Efficiency	H13 / 99.99% at 0.3 micron
Rated Flow	1437 cfm
Initial Resistance	About 1.0 in. w.g.
Media Type	Water-resistant microglass mini-pleat
Internal Form	Multi-pack V-bank
Frame	Anodized aluminum
Seal Choice	Gasket interface for compatible holding frame
Recommended Duty	Standard-capacity critical-air AHU
Customization	Available based on the intended application and operating environment.

Applications

Used in medical, pharmaceutical and clean-process final-filter banks designed around a 24-inch square cell and roughly 1437 cfm per filter. It is a sensible choice when system airflow is moderate and maximizing capacity within every opening would add unnecessary weight or cost.

Solutions for Your Application

A maximum-capacity element is unnecessary for the actual branch airflow.Choose the 1437 cfm media-area selection and balance the bank around the real design duty.

The replacement fits the face but interferes with the rear of the casing.Verify the full 11.5-inch element depth, gasket face and withdrawal path before release.

Available Options

Select gasket face, exact actual dimensions, pack efficiency, airflow direction and protective screen arrangement for the existing 24-inch housing.

Planning a High-Capacity HEPA Filter 1437 CFM H13 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
