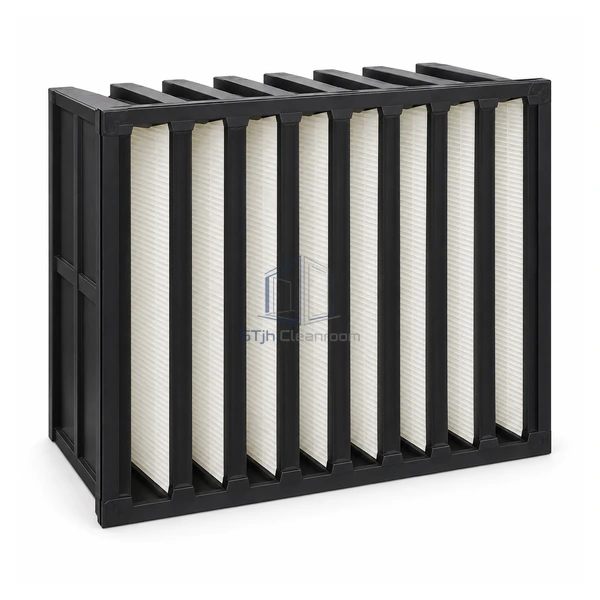

STjh 5000 CFM high-airflow medium filter main product view

STJH-HIGH-AIRFLOW-MEDIUM-FILTER-5000

High-Airflow Medium-Efficiency Filter 5000 m3/h Extra-High-Flow

An expanded-media E10 full module delivering the family's maximum 5000 m3/h airflow capacity.

5000 m3/h maximum family flow
Expanded V-bank media area
210 Pa initial resistance

Request a Quote Browse Products

Product Introduction

This extra-high-airflow version retains the 610 × 610 × 292 mm envelope but expands usable media area to reach 5000 m3/h. The added throughput increases the published initial pressure drop to 210 Pa, while the construction remains suitable for temperatures up to 120 °C. It is intended for air-starved process systems where maximum flow through each standard bank opening is the controlling requirement.

Key Features

Maximum flow per module

The media layout extracts an additional 1000 m3/h from the same face and depth as the 4000 m3/h model.

Standard external envelope

The high-capacity pack remains within a 610 mm square, 292 mm-deep cassette.

Elevated-temperature operation

The complete filter is intended for process air up to its 120 °C rated limit.

Technical Parameters

Overall Dimensions	610 × 610 × 292 mm
Filtration Class	E10
Nominal Airflow	5000 m3/h
Initial Pressure Drop	210 Pa
Maximum Operating Temperature	120 °C
Media Capacity	Expanded-area high-flow pack
Module Type	Full-size compact cassette
Bank Geometry	Multiple V-shaped media elements
Selection Priority	Maximum airflow per standard opening
Customization	Available based on the intended application and operating environment.

Applications

Selected for high-demand process-air supply, warm clean recirculation and constrained filter banks where additional face openings cannot be added. It offers the greatest throughput of the three E10 models but requires the fan to account for its 210 Pa clean resistance.

Solutions for Your Application

The existing bank area cannot deliver the required process airflow with standard modules.The expanded-media model raises rated capacity to 5000 m3/h without changing the external module size.

Increasing airflow creates an unplanned pressure penalty.Use the 210 Pa initial pressure value in the fan calculation and define a monitored loaded-filter limit.

Available Options

Confirm fan-pressure margin, temperature-resistant seal, header form and airflow orientation before choosing the 5000 m3/h configuration.

Planning a High-Airflow Medium-Efficiency Filter 5000 m3/h Extra-High-Flow specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
