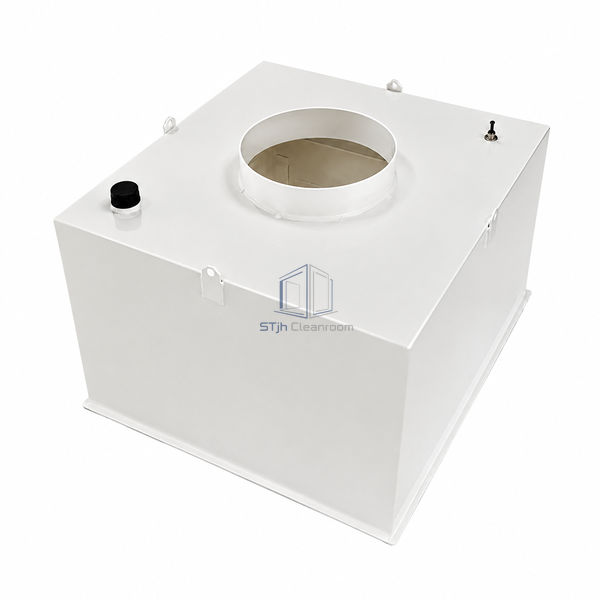

STjh 591 mm T-grid HEPA terminal housing with a broad top inlet collar and white mounting flange

STJH-HEPA-TERMINAL-HOUSING-TGRID-591

HEPA Terminal Housing 591 mm T-Grid Top-Entry

A top-entry HEPA terminal sized for nominal 600 mm suspended-ceiling grid bays.

Nominal 600 mm T-grid fit
300 mm top spigot
0.14-0.27 m³/s airflow

Request a Quote Browse Products

Product Introduction

The 591 x 591 x 370 mm casing fits within a nominal 600 mm T-grid bay and supports a 597 x 597 mm diffuser. Its 300 mm top spigot and 0.14-0.27 m³/s flow range serve larger room zones than the mini housing while preserving standard suspended-ceiling coordination. Clean pressure drop remains 125-250 Pa.

Key Features

T-grid coordination

The 591 mm casing drops within a standard nominal 600 mm ceiling module.

Larger branch connection

A 300 mm inlet supports the higher airflow range of this intermediate terminal.

Finished room face

The 597 mm diffuser aligns with the visible grid opening.

Technical Parameters

Casing Dimensions	591 x 591 x 370 mm
Diffuser Dimensions	597 x 597 mm
Airflow Range	0.14-0.27 m³/s
Clean Pressure Drop	125-250 Pa
Standard Inlet	300 mm top spigot
Filter Type	HEPA terminal filter
Ceiling Format	Nominal 600 mm T-grid
Air Entry	Top
Discharge	Room-side square diffuser
Customization	Available based on the intended application and operating environment.

Applications

Recommended for pharmaceutical, laboratory and healthcare suspended ceilings using standard grid bays. The 300 mm branch should be balanced across the stated flow range.

Solutions for Your Application

A nonstandard casing complicates T-grid installation.Use the 591 mm housing and 597 mm diffuser designed around a nominal 600 mm module.

A small inlet cannot supply the required room volume.Use the 300 mm top spigot for the 0.14-0.27 m³/s duty.

Available Options

Confirm HEPA grade, diffuser, casing finish, branch connection and ceiling seal. Coordinate access for filter integrity testing and service.
