STJH-HEPA-GASKET-SILICONE-260C

HEPA Filter Compression Gasket 260 C Silicone

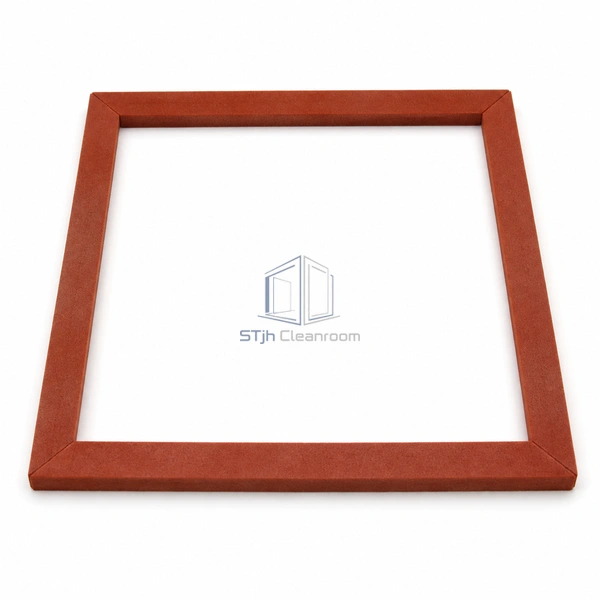

A heat-resistant silicone sponge seal for clamped stainless HEPA filters used in high-temperature process air.

260 C construction basis
Silicone sponge profile
Stainless high-temperature HEPA fit

Request a Quote Browse Products

Product Introduction

This silicone sponge gasket is paired with stainless high-temperature HEPA construction rated on a 260 C basis. It can be fitted upstream, downstream or on both filter faces and used with compatible high-temperature silicone sealants. The gasket is intended for oven and tunnel service where standard polyurethane foam would not retain sealing properties; the full filter, sealant, frame and housing must share the same thermal duty.

Key Features

Heat-resistant compression seal

Silicone sponge maintains resilient contact at temperatures beyond standard cleanroom gasket materials.

High-temperature system compatibility

The profile can be paired with stainless frames and heat-resistant silicone sealants.

Selectable face arrangement

Upstream, downstream or dual-face placement accommodates different oven housing interfaces.

Technical Parameters

Gasket Material	Silicone sponge
Maximum Temperature Basis	260 C filter construction
Compatible Frame	Stainless high-temperature HEPA
Location	Upstream, downstream or both faces
Sealant Compatibility	High-temperature silicone
Seal Method	Mechanical compression
Primary Duty	Heated process air
Thermal Requirement	All filter and housing components matched to duty
Inspection	Check heat aging, compression set and surface cracks
Customization	Available based on the intended application and operating environment.

Applications

For depyrogenation tunnels, pharmaceutical ovens and heated process sections where the filter gasket is exposed to elevated operating temperature.

Solutions for Your Application

Only the gasket is heat rated while adhesive or filter sealant fails first.Verify the complete high-temperature assembly, including media sealant, frame, gasket bond and housing compression components.

Repeated heat cycles produce compression set and reduce sealing pressure.Inspect gasket recovery at planned shutdowns and replace the filter when permanent flattening or cracks are visible.

Available Options

Confirm maximum continuous and cycle temperature, profile dimensions, face location, stainless frame, sealant and clamp travel.
