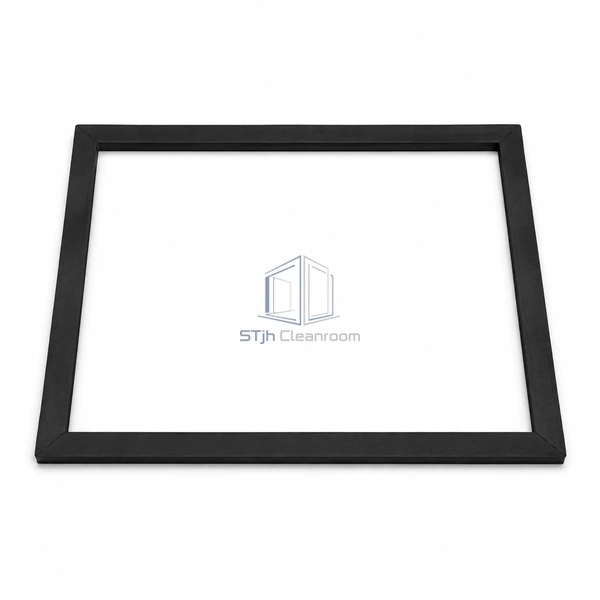

STJH-HEPA-GASKET-EPDM

HEPA Filter Compression Gasket EPDM

A resilient EPDM frame seal for humid cleanrooms and sanitation routines where polyurethane foam may be less suitable.

EPDM elastomer profile
Humidity-resistant service
Anodized aluminum frame compatibility

Request a Quote Browse Products

Product Introduction

The EPDM profile provides a resilient perimeter seal with useful resistance to moisture and many cleaning environments. It can be fitted continuously or with a controlled joined profile on the upstream or downstream flange of an anodized aluminum HEPA or ULPA frame. This model is differentiated by material compatibility rather than extreme temperature; the actual disinfectant and process chemicals must be checked against the selected EPDM compound.

Key Features

Wet-environment resilience

EPDM retains useful sealing behavior in humid air and routine washdown exposure.

Chemical compatibility range

A suitable compound can tolerate many sanitation agents when verified against concentration and temperature.

Conventional clamp interface

The profile works with upstream or downstream gasket-compression filter frames.

Technical Parameters

Gasket Material	EPDM
Construction	Continuous or controlled joined profile
Location	Upstream or downstream flange
Frame Compatibility	Anodized aluminum HEPA or ULPA frame
Seal Method	Mechanical compression
Service Environment	Humid and sanitation-exposed cleanroom
Primary Benefit	Moisture and chemical resistance
Temperature Basis	Selected EPDM compound limits
Inspection	Check hardening, swelling and joint continuity
Customization	Available based on the intended application and operating environment.

Applications

For food, pharmaceutical and battery cleanrooms with frequent sanitation, high humidity or cleaning-agent exposure compatible with EPDM.

Solutions for Your Application

A disinfectant causes the gasket to swell, soften or lose recovery.Review the exact chemical, concentration, temperature and contact time against the selected EPDM compound.

A joined profile leaves a discontinuity at the seam.Place and bond the joint under controlled conditions, then inspect the full perimeter before filter installation.

Available Options

Confirm EPDM grade, profile dimensions, joint method, gasket face, frame alloy, compression percentage and cleaning chemicals.

Planning a HEPA Filter Compression Gasket EPDM specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
