STJH-H-TYPE-CLEANROOM-CONNECTOR-50X6000

H-Type Cleanroom Panel Connecting Profile 50 mm Wide Aluminum H-Bar for Panels

A 50 mm wide painted aluminum H-bar for continuous cleanroom panel connections.

6000 mm stock reduces intermediate profile splices.
Opposed receiving sides provide a common line for two panel sheets.

Request a Quote Browse Products

Product Introduction

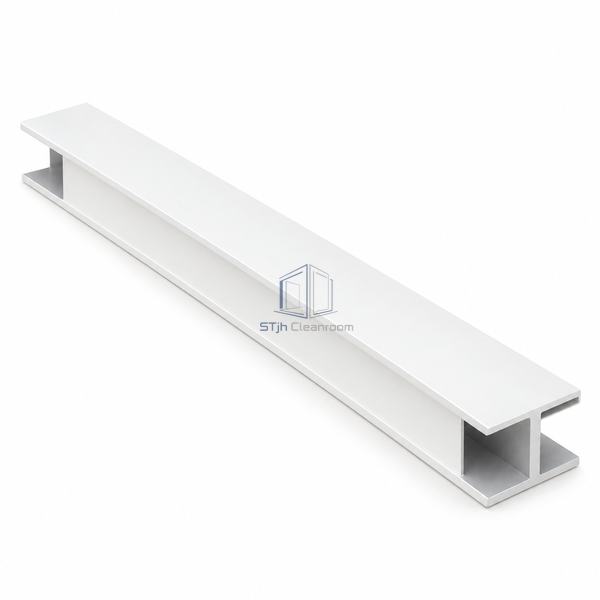

An extruded central web and opposed flanges form the uppercase H section. Electrostatic paint covers the aluminum alloy, giving the exposed joining strip a milk-white finish.

Key Features

6000 mm stock reduces intermediate profile splices.
Opposed receiving sides provide a common line for two panel sheets.

Technical Parameters

Profile Width	50 mm
Stock Length	6000 mm
Material	Aluminum alloy
Section Shape	Uppercase H
Surface Finish	Electrostatic paint
Standard Color	Milk white
Joining Function	Two panel sheets
Profile Route	Straight continuous joint
Manufacturing Method	Extrusion
Customization	Available based on the intended application and operating environment.

Applications

Long cleanroom panel joints
Wall assemblies using a 50 mm H-bar interface

Solutions for Your Application

An uppercase H-bar and a lowercase h-profile may be confused on a parts list.

Use the uppercase H section where the joint must receive a panel edge from each side.

A panel layout leaves several different joint lengths to cut.

Group the required cuts within each stock bar before fabrication to reduce short offcuts.

Available Options

Pre-cut lengths
Matching panel accessories

Planning a H-Type Cleanroom Panel Connecting Profile 50 mm Wide Aluminum H-Bar for Panels specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
