STJH-H-TYPE-CLEANROOM-CONNECTOR-40X14-HIDDEN

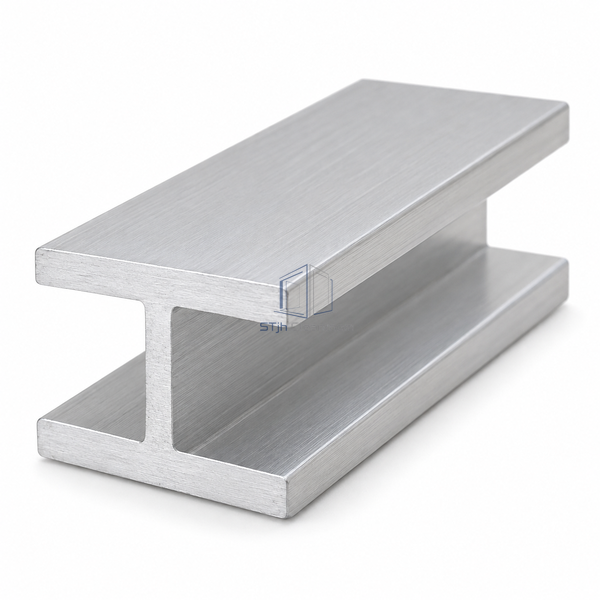

H-Type Cleanroom Panel Connecting Profile 40 x 14 mm Hidden Connector

A compact H-shaped aluminum connector for hidden cleanroom panel joints.

Opposed sides provide the defining H connection geometry.
The shallow section fits a concealed joint position.
A continuous web keeps the two sides aligned.

Request a Quote Browse Products

Product Introduction

The 40 x 14 mm section places two opposed receiving sides around a connecting web. It is intended to sit within a hidden assembly, providing a compact connection member instead of a full-depth edge cap over the wall panel.

Key Features

Opposed sides provide the defining H connection geometry.
The shallow section fits a concealed joint position.
A continuous web keeps the two sides aligned.

Technical Parameters

Section Width	40 mm
Section Depth	14 mm
Material	Aluminum
Cross-Section	H shape
Installation	Hidden system
Connection Sides	Two opposed sides
Manufacturing Process	Extrusion
Member Type	Linear connector
Length Option	Cut-to-length
Customization	Available for the intended application and operating environment.

Applications

Concealed cleanroom wall joints
Compact modular panel interfaces

Solutions for Your Application

A full-depth receiver is too bulky for the hidden interface.

The 40 x 14 mm section occupies a compact connection envelope.

Two separate strips could move independently at the joint.

The H web links the opposed sides in one extrusion.

Available Options

Cut connector lengths
Matching hidden-system members

Planning a H-Type Cleanroom Panel Connecting Profile 40 x 14 mm Hidden Connector specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
