STJH-H-TYPE-CLEANROOM-CONNECTOR-100-RECEIVER

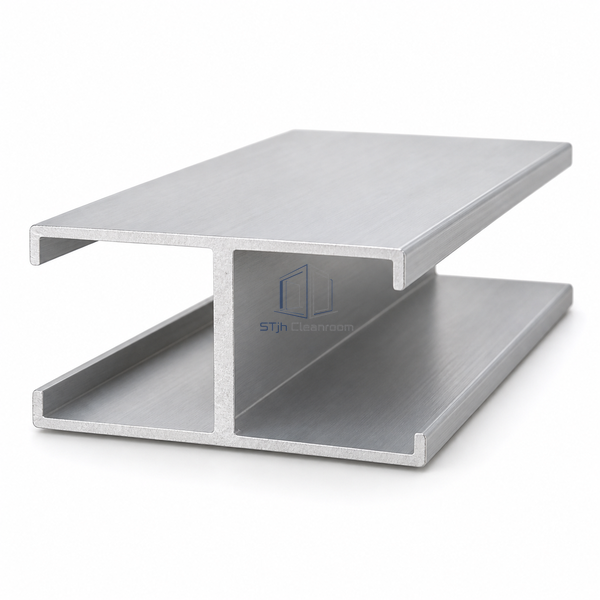

H-Type Cleanroom Panel Connecting Profile 100 mm Slot Receiver

An aluminum H receiver with 100 mm wide slots for thick cleanroom panel edges.

The wide opening accommodates a 100 mm panel-edge interface.
A shared joining member keeps adjacent edges on one joint line.

Request a Quote Browse Products

Product Introduction

Opposed channels receive adjoining wall panels on either side of a central web. The section runs vertically between the panels and is available with an anodized or powder-coated surface.

Key Features

The wide opening accommodates a 100 mm panel-edge interface.
A shared joining member keeps adjacent edges on one joint line.

Technical Parameters

Slot Width	100 mm
Material	Aluminum
Section Type	H receiver
Receiving Sides	Two
Joint Direction	Vertical panel-to-panel
Web Arrangement	Central separating web
Surface Options	Anodized or powder coated
Manufacturing Form	Linear extrusion
Length Format	Cut-to-length
Customization	Available to suit the intended application and operating environment.

Applications

Thick modular cleanroom wall connections
100 mm panel-edge junctions

Solutions for Your Application

The panel is too thick to enter a narrower channel.

Select the receiver by the panel-edge thickness; this version has a 100 mm slot width.

Cut panel ends could remain visible at the joint.

Seat each edge within its receiving channel so the profile covers the panel end.

Available Options

Selected extrusion length
Anodized or coated surface option

Planning a H-Type Cleanroom Panel Connecting Profile 100 mm Slot Receiver specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
