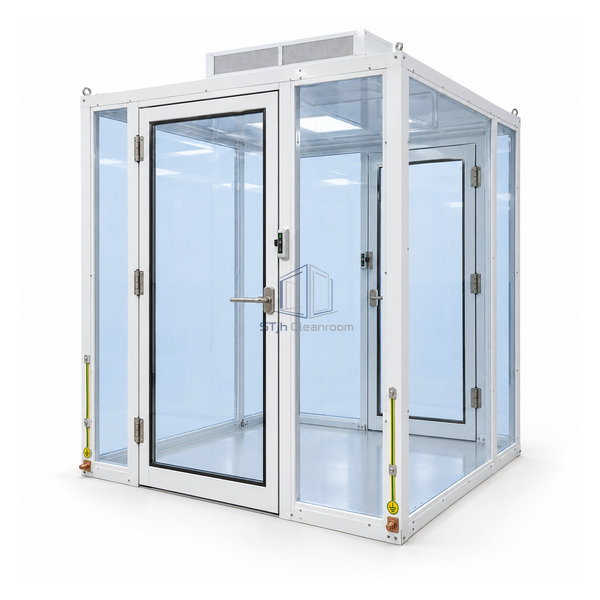

STjh 6 by 6 foot static-dissipative gowning airlock with tinted PVC hardwalls and visible grounding hardware

STJH-GOWNING-AIRLOCK-6X6-STATIC-DISSIPATIVE

Cleanroom Gowning Airlock 6 × 6 ft Static-Dissipative

A compact SDPVC hardwall transition for electronics gowning routes that need static-control surfaces.

Static-dissipative PVC panels
6 x 6 ft space-saving plan
Electronics-oriented personnel transition

Request a Quote Browse Products

Product Introduction

This model retains the 72 x 72 x 96 in compact geometry but replaces standard acrylic with static-dissipative PVC hardwall panels. The material choice makes it better suited to electronics and semiconductor gowning approaches where charge accumulation on enclosure surfaces is a concern. Rigid panels and a powder-coated frame define a controlled personnel sequence within a small footprint.

Key Features

Static-control enclosure

SDPVC panels provide a dissipative wall surface around personnel entering charge-sensitive work areas.

Small controlled footprint

The 72 in square chamber fits constrained entrances while maintaining a distinct changing zone.

Rigid modular construction

Hardwall panels resist billowing and create defined surfaces for doors, controls and signage.

Technical Parameters

External Dimensions	72 W x 72 D x 96 H in
Panel Material	Static-dissipative PVC hardwall
Frame Material	Powder-coated steel
Wall Type	Rigid static-control panels
Nominal Design Basis	ISO 8 gowning transition
Traffic Capacity	Compact single-person workflow
Door Arrangement	Two-door personnel transition
Interior Fit-Out	Compact bench or footwear-change zone
Primary Use	Charge-sensitive cleanroom entry
Customization	Available based on the intended application and operating environment.

Applications

For semiconductor, electronics and precision-assembly entries where personnel gown before entering a static-sensitive controlled space. Panel grounding and the facility ESD control method must be coordinated with floors, garments and furniture.

Solutions for Your Application

Standard acrylic panels can become a charge-accumulating surface near sensitive components.Use static-dissipative PVC walls as part of the facility's coordinated ESD control system.

The transition area is too small for separate donning and storage zones.Keep bulk garment storage outside and reserve the 6 x 6 ft chamber for the defined change step.

Available Options

Select door handing, grounding provisions, ceiling modules, lighting, bench layout and access controls. Panel tint and frame finish can be matched to the cleanroom interior.

Planning a Cleanroom Gowning Airlock 6 × 6 ft Static-Dissipative specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
