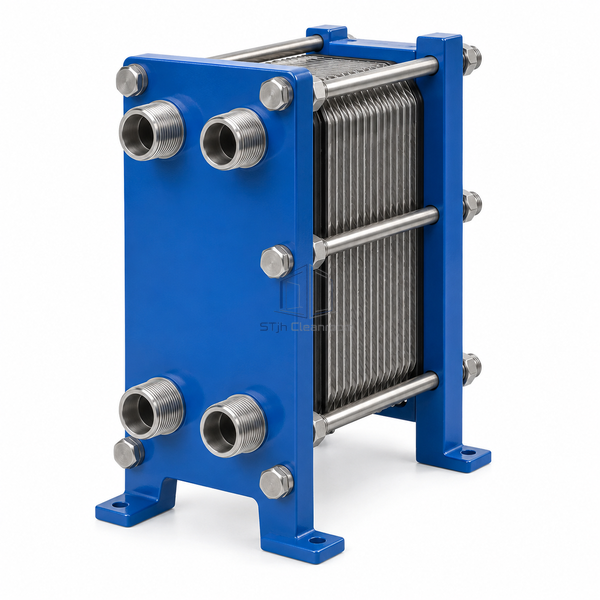

STjh 6.4 ft2 gasketed plate-and-frame heat exchanger with a compact ten-plate pack and threaded ports on white.

STJH-GASKETED-PLATE-HEAT-EXCHANGER-64FT2

Gasketed Plate-and-Frame Heat Exchanger 6.4 ft2

A compact 10-plate Alloy 316 gasketed exchanger with 6.4 ft2 transfer area and 1-1/4 inch NPT connections.

10 removable plates
6.4 ft2 transfer area
1-1/4 inch NPT ports

Request a Quote Browse Products

Product Introduction

The small TL3-class frame holds 10 removable Alloy 316 plates for a total 6.4 ft2 heat-transfer area. Compact 1-1/4 inch NPT ports suit local clean utility isolation, equipment cooling and small hydronic decoupling duties.

Key Features

Compact loop separation

The small plate pack transfers heat while keeping primary and secondary fluids in separate circuits.

Serviceable gasketed construction

The frame can be opened for plate inspection, cleaning or gasket replacement.

Alloy 316 wetted plates

Stainless alloy plates provide a practical wetted surface for many clean utility fluids.

Technical Parameters

Plate Count	10
Heat-Transfer Area	6.4 ft2
Connection	1-1/4 in NPT
Plate Material	Alloy 316
Construction	Gasketed plate-and-frame
Circuit Separation	Two independent fluid paths
Service Method	Openable bolted frame
Duty Class	Small local heat transfer
Installation	Floor, frame or equipment-mounted
Customization	Gasket material, plate count and connection arrangement can be configured for the intended application and operating environment.

Applications

Small clean utility isolation loops, local process equipment cooling, laboratory skids and compact hydronic heat transfer.

Solutions for Your Application

Process equipment needs thermal exchange without mixing its fluid with the building loop.Use the two separated plate channels and select gaskets compatible with both fluids.

A brazed exchanger cannot be opened for cleaning.Use the gasketed frame so the 10 plates can be inspected and serviced.

Available Options

Gasket elastomer, additional plates, alternate connections, insulation cover, drip tray, frame coating and mounting feet can be selected.
