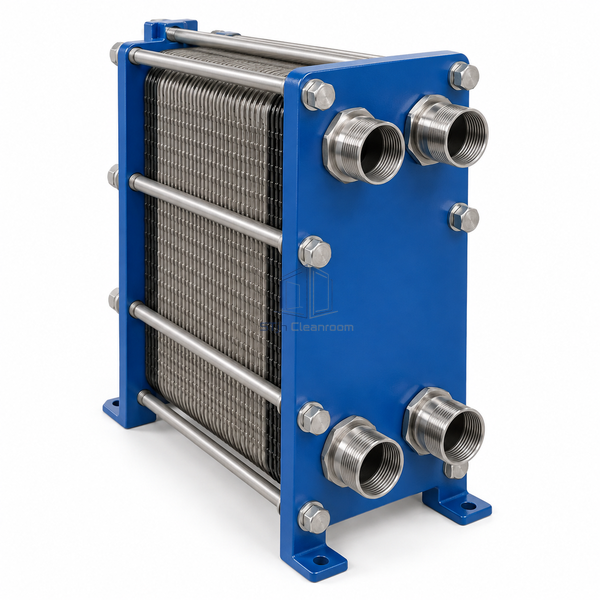

STjh 12.5 ft2 plate-and-frame heat exchanger with fifteen plates and two-inch threaded connections on white.

STJH-GASKETED-PLATE-HEAT-EXCHANGER-125FT2

Gasketed Plate-and-Frame Heat Exchanger 12.5 ft2

A medium T5-class gasketed exchanger with 15 Alloy 316 plates, 12.5 ft2 area and 2 inch NPT connections.

15 Alloy 316 plates
12.5 ft2 heat-transfer area
2 inch NPT connections

Request a Quote Browse Products

Product Introduction

This medium frame expands to 15 plates and 12.5 ft2 of heat-transfer area. Its 2 inch connections and 27.6 inch frame height accommodate more flow than the compact TL3-class unit for chilled-water separation and clean-process duty.

Key Features

Medium circuit capacity

More plate area serves larger flows or closer approach temperatures than the 6.4 ft2 frame.

Two-inch connection path

Larger ports reduce connection restriction for medium hydronic and process circuits.

Expandable plate pack

The bolted frame allows plate quantity to be adjusted within its mechanical capacity.

Technical Parameters

Plate Count	15
Heat-Transfer Area	12.5 ft2
Connection	2 in NPT
Dimensions	27.6 x 10.2 x 6.7 in
Plate Material	Alloy 316
Construction	Gasketed T5-class frame
Fluid Circuits	Separated primary and secondary
Maintenance	Removable plate pack
Installation	Supported floor or skid mounting
Customization	Plate count, gasket material and nozzle orientation can be configured for the intended application and operating environment.

Applications

Medium chilled-water separation, clean-process heating or cooling, pharmaceutical utility skids and heat-pump isolation loops.

Solutions for Your Application

The small exchanger creates excessive pressure drop at the required medium flow.Use the 2 inch ports and 12.5 ft2 plate pack, then select channel geometry for both circuits.

Future thermal load may increase after production expansion.Reserve frame capacity and piping clearance for additional compatible plates where practical.

Available Options

Plate quantity, gasket material, nozzle arrangement, insulation jacket, drain tray, frame finish and support base are available.

Planning a Gasketed Plate-and-Frame Heat Exchanger 12.5 ft2 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
