Wide exposed grid faces dominate a compact ceiling layout.
The 25.4 mm face provides a narrower visible line around each module.
STJH-GASKETED-CLEANROOM-CEILING-GRID-SYSTEM-25

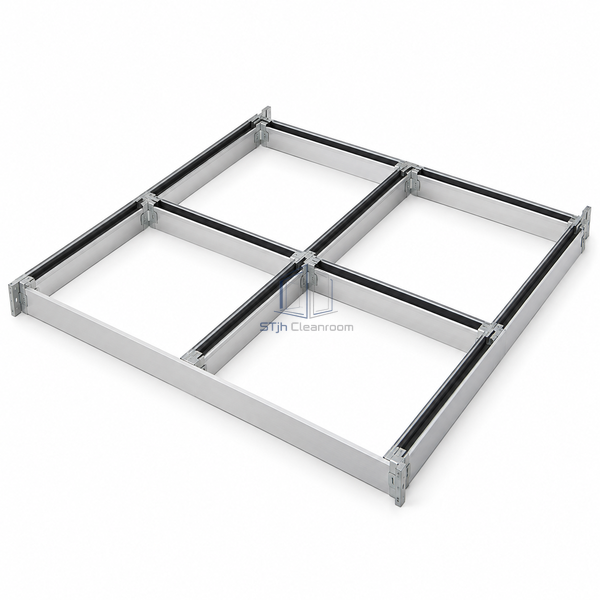

Gasketed Cleanroom Ceiling Grid System 25 mm Pre-Gasketed
A narrow gasketed T-grid supports a cleanroom ceiling with less visible face width.
- The narrow flange gives the ceiling a fine exposed grid line.
- Factory gasket application provides consistent placement along the support ledge.
- Clip connections simplify assembly at intersecting members.
Product Introduction
The 25.4 mm grid profile carries a factory-applied polyethylene seal along its bearing surface. Main members and cross pieces connect through a clip assembly. The system creates a gasketed boundary beneath the plenum while supporting the selected ceiling tiles, lights and filter modules.
Key Features
- The narrow flange gives the ceiling a fine exposed grid line.
- Factory gasket application provides consistent placement along the support ledge.
- Clip connections simplify assembly at intersecting members.
Technical Parameters
| Grid Face Width | 25.4 mm |
|---|---|
| Gasket Thickness | 3.175 mm |
| Gasket Material | Polyethylene |
| Metal Options | Aluminum or steel |
| Standard Steel Finish | White painted |
| Aluminum Finish | Anodized |
| Member Connection | Clip assembly |
| Seal Position | Factory-applied bearing-surface gasket |
| Supported Components | Ceiling tiles, light fixtures and HEPA modules |
| Customization | Available for the room dimensions and selected ceiling components. |
Applications
- Cleanroom ceilings with a narrow exposed grid pattern
- Controlled food-processing areas using gasketed ceiling tiles
Solutions for Your Application
Gasket placement at installation can become inconsistent.
The bearing seal is factory applied to the grid members.
Available Options
- Anodized aluminum members
- White painted steel members
- Room-specific grid arrangement
Planning a Gasketed Cleanroom Ceiling Grid System 25 mm Pre-Gasketed specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
