Galvanized Steel Rectangular Air Duct 1000 x 500 mm Reinforced

Reinforced trunk duct with a 1000 x 500 mm airway for large supply and return routes.

Large opening carries trunk airflow at lower velocity than a smaller section at equal volume.
Hat-shaped stiffeners support broad sheet-metal panels.
Perimeter joints allow modular replacement of straight lengths.

Request a Quote Browse Products

Product Introduction

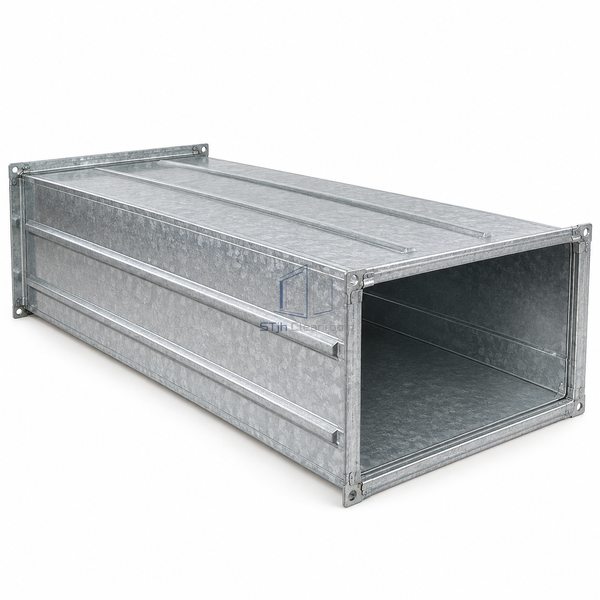

A half-square-metre internal section suits principal air-distribution runs. The longer panel spans use visible stiffening members, while the galvanized shell and end frames form a robust rectangular assembly for connection to large fittings.

Key Features

Large opening carries trunk airflow at lower velocity than a smaller section at equal volume.
Hat-shaped stiffeners support broad sheet-metal panels.
Perimeter joints allow modular replacement of straight lengths.

Technical Parameters

Clear Width	1000 mm
Clear Height	500 mm
Internal Area	0.500 m²
Metal Finish	Z275 hot-dip galvanized steel
Reinforcement	Hat profiles or tie rods
End Connection	Sealed rectangular joining profile
Positive Pressure Limit	1000 Pa
Negative Pressure Limit	-750 Pa
Support Spacing	Not more than 2400 mm
Customization	Trunk lengths and reinforcement can be adapted to the operating environment.

Applications

Mechanical-floor supply trunks
Large common return-air headers

Solutions for Your Application

Broad panels can flex under fan pressure.

Dedicated stiffening members reduce unsupported spans.

A trunk must connect to several smaller runs.

Matching transitions and take-off fittings divide the main airway into downstream branches.

Available Options

Insulated double-skin configuration
Custom branch transition fittings

Planning a Galvanized Steel Rectangular Air Duct 1000 x 500 mm Reinforced specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
