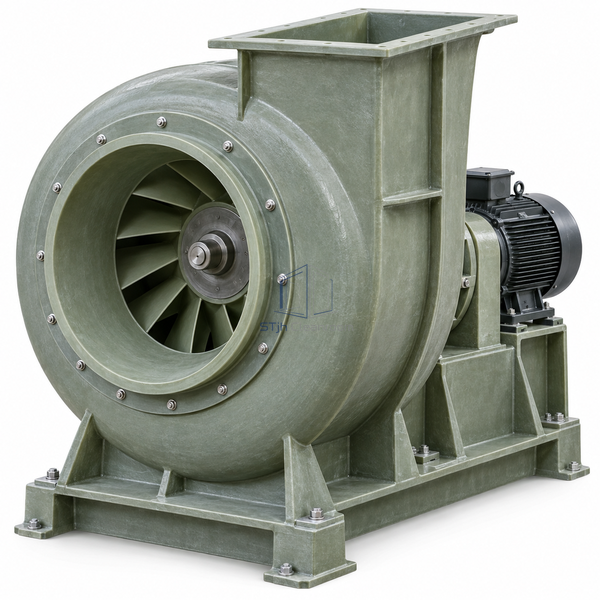

STjh 60-inch FRP corrosion-resistant exhaust fan with a massive molded casing and heavy drive base on white.

STJH-FRP-CORROSION-RESISTANT-EXHAUST-FAN-60IN

FRP Corrosion-Resistant Exhaust Fan 60-Inch

The largest documented FRP fan size for central corrosive exhaust and major scrubber systems.

60 in maximum family diameter
Up to 84000 CFM family airflow
25 in. wg family pressure

Request a Quote Browse Products

Product Introduction

This 60 in fan sits at the largest documented diameter of the FRP fume-exhauster family. A heavy molded casing and large FRP wheel support the high end of a family reaching 84000 CFM and 25 in. wg. The size is intended for central clean-manufacturing exhaust and large scrubber trains; structure, rotor inertia, duct loads and field assembly require project-specific engineering around the selected operating point.

Key Features

Central corrosive-air capacity

The large wheel handles combined exhaust from major chemical or wet-process areas.

Heavy FRP pressure boundary

Molded casing and wheel materials protect the gas path while supporting large-system loads.

Scrubber-train integration

Arrangement and inlet geometry can be matched to high-resistance treatment equipment.

Technical Parameters

Nominal Size	60 in
Material	Fiberglass-reinforced plastic
Maximum Family Airflow	84000 CFM
Maximum Family Pressure	25 in. wg
Wheel	Large FRP radial or backward-inclined selection
Resin	Matched to gas and condensate chemistry
Drive	Industrial arrangement selected to load
Support	Engineered heavy base and flexible duct connection
Primary Duty	Central corrosive exhaust
Customization	Available based on the intended application and operating environment.

Applications

For central corrosive exhaust, large scrubber systems and high-volume clean manufacturing chemical ventilation.

Solutions for Your Application

Large duct loads or thermal movement distort the FRP casing and wheel clearance.Use independent duct supports, flexible connectors and an engineered fan foundation.

A high-speed selection exceeds safe FRP wheel stress or motor power.Select the certified wheel and speed from the size-specific curve and verify absorbed power and tip speed.

Available Options

Specify exact duty, gas chemistry, resin, wheel, arrangement, motor, inlet box, shaft sealing, drains, access and condition monitoring.
