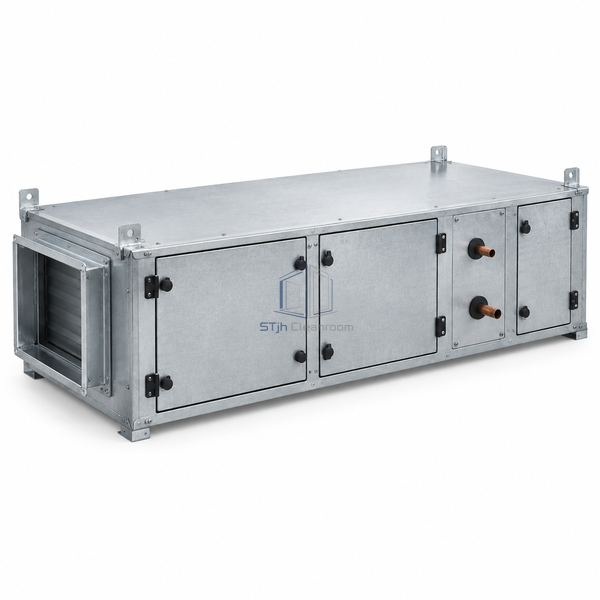

Fresh Air Handling Unit 1497 × 749 mm

A medium 1497 x 749 x 373 mm single-flow fresh-air cabinet with a larger fan and coil bay for clean packaging and laboratory ventilation.

1497 x 749 x 373 mm casing
400 mm connection envelope
74 kg medium chassis

Request a Quote Browse Products

Product Introduction

The wider 749 mm cabinet and 400 mm connection envelope provide more air-treatment area than the compact fresh-air model while maintaining a flat single-flow form. At 74 kg, the unit balances manageable support loads with additional space for the fan, filter and conditioning coil.

Key Features

Broader component bay

The 749 mm width gives the fan and coil more face area for medium outdoor-air duty.

Single-flow simplicity

Only the supply stream passes through the casing, allowing connection to an independently arranged room exhaust.

Serviceable flat cabinet

The enclosure remains relatively shallow while providing access to filters and conditioning components.

Technical Parameters

Cabinet Dimensions	1497 x 749 x 373 mm
Connection Envelope	400 mm
Equipment Weight	74 kg
Air Path	Single-flow fresh-air supply
Fan Assembly	Integrated direct-drive fan
Filter Section	Replaceable outdoor-air filtration
Coil Section	Heating or cooling arrangement as selected
Control Functions	Fan-speed and supply-temperature control options
Installation	Indoor horizontal or supported flat arrangement
Customization	Air treatment, connection layout and controls can be adapted to the intended application and operating environment.

Applications

Medium clean packaging areas, controlled laboratories, pharmaceutical support rooms and dedicated replacement-air systems.

Solutions for Your Application

The smaller fresh-air chassis lacks the face area for the specified conditioning duty.Use the 749 mm-wide cabinet to accommodate the larger fan and coil bay.

Service access must be preserved in a ceiling or narrow plant zone.Coordinate the removable-panel side and 400 mm connection envelope before fixing supports and ducts.

Available Options

Supply filter stages, electric or water heating, cooling coil, frost protection, fan controls, sensors and connection accessories are selectable.

Planning a Fresh Air Handling Unit 1497 × 749 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
