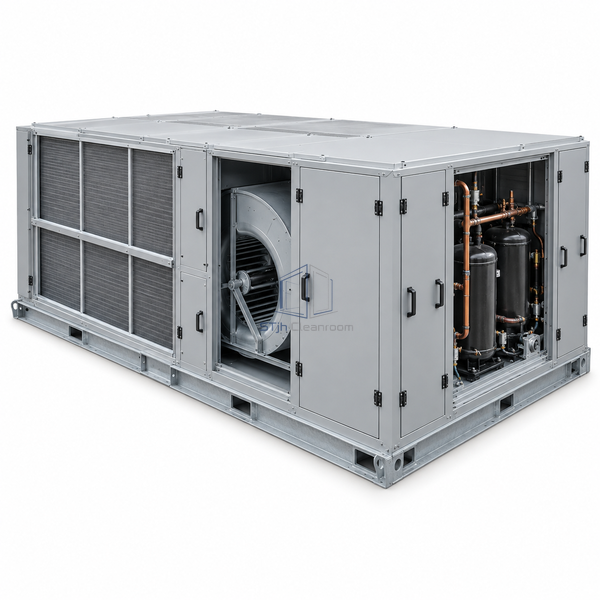

STjh 6000 CFM fresh-air dehumidification unit with a large wheel face and heavy multi-section chassis on white.

STJH-FRESH-AIR-DEHUMIDIFICATION-UNIT-6000CFM

Fresh-Air Dehumidification Unit 6000 CFM

A high-capacity 6000 CFM fresh-air dehumidifier with a 30-ton compressor circuit and enlarged wheel and coil sections.

6000 CFM central airflow
30 compressor cooling tons
Large 142 x 96 x 72 in chassis

Request a Quote Browse Products

Product Introduction

This 6000 CFM model addresses large ventilation loads and neutral-air delivery for a central clean facility. The 142 x 96 x 72 inch chassis provides the broad wheel and heat-exchanger faces required for twice the medium model airflow, with 30 compressor tons and 50 tons of equivalent cooling duty.

Key Features

Central-facility capacity

One package can condition a large outdoor-air header serving multiple controlled rooms or production zones.

Broad face-area components

The enlarged rotor and coils limit face velocity while processing the selected 6000 CFM stream.

Neutral-air delivery

Integrated drying and cooling prepare ventilation air close to the required humidity and supply-temperature condition.

Technical Parameters

Nominal Airflow	6000 CFM
Compressor Cooling	30 tons
Equivalent Cooling	50 tons
Dimensions	142 x 96 x 72 in
Approximate Weight	4850 lb
Ventilation Duty	Large 100% outdoor-air stream
Dehumidification	Regenerated desiccant wheel
Thermal Section	Integrated refrigeration coils
Installation	Central floor-mounted air-handling package
Customization	Air connections, heat sources, filters and automation can be configured for the intended application and operating environment.

Applications

Large clean production facilities, central pharmaceutical ventilation, battery process areas and neutral-air distribution systems.

Solutions for Your Application

Seasonal outdoor moisture overwhelms a large facility's chilled-water coils.Remove latent load in the regenerated wheel before the 6000 CFM stream enters the downstream cooling section.

The 4850 lb package is difficult to install in an existing plant room.Coordinate sectional delivery, lifting points, structural loading and a service aisle before equipment manufacture.

Available Options

Multiple filter stages, gas or electric regeneration, energy recovery, weather casing, access sections and BACnet-compatible controls can be selected.
