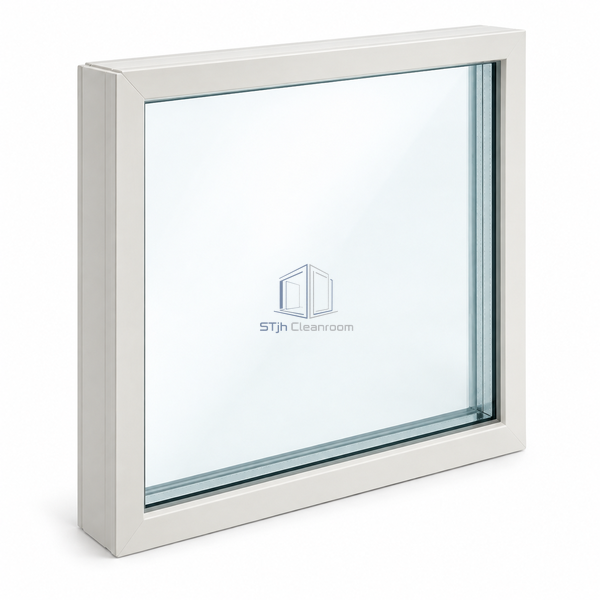

STjh 50 mm CPVC-frame flush vision panel on white, showing two clear glass faces and a pale nonmetallic perimeter in three-quarter view.

STJH-FLUSH-MOUNTED-CLEANROOM-VISION-PANEL-50-CPVC

Flush-Mounted Cleanroom Vision Panel 50 mm CPVC-Frame Fully

A 50 mm flush vision unit with a CPVC frame and two 6 mm toughened-glass faces.

CPVC perimeter provides a distinct alternative to a metal window frame.
Two 6 mm glass faces form a protected observation cavity.
One-piece delivery keeps both glazing planes aligned within the 50 mm depth.

Request a Quote Browse Products

Product Introduction

This one-piece vision panel combines a nonmetallic CPVC perimeter with toughened glass on each face. Its 50 mm overall depth fits the corresponding wall-panel system, bringing the glazing into the wall plane on both sides. Integrated desiccant manages moisture within the enclosed space between the panes. The unit arrives as a complete assembly for insertion into the panel opening, avoiding the need to construct the two glazed faces independently during wall installation.

Key Features

CPVC perimeter provides a distinct alternative to a metal window frame.
Two 6 mm glass faces form a protected observation cavity.
One-piece delivery keeps both glazing planes aligned within the 50 mm depth.

Technical Parameters

Overall Depth	50 mm
Perimeter Material	CPVC
Glass Thickness	6 mm per face
Glass Treatment	Toughened glass
Glazing Arrangement	Double glazed
Surface Alignment	Fully flush both sides
Cavity Moisture Control	Integrated desiccant
Installation Format	One-piece preassembled unit
Published Maximum Size	2400 x 2000 mm
Customization	Opening size and glass appearance can be tailored to the intended room and wall-panel application.

Applications

Observation through 50 mm cleanroom wall panels
Flush viewing openings in controlled manufacturing partitions

Solutions for Your Application

The wall design calls for a nonmetallic window perimeter.

Specify the CPVC frame while keeping toughened glass on both exposed faces.

Separate glazing installation can leave unequal setbacks on opposing wall faces.

The assembled 50 mm unit establishes both flush planes together.

Available Options

Tinted glazing
Custom opening dimensions within the published size envelope

Planning a Flush-Mounted Cleanroom Vision Panel 50 mm CPVC-Frame Fully specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
