A single broad leaf needs excessive swing space.
Dividing the opening between two doors reduces the width of each swinging section.
STJH-FLUSH-CLEANROOM-WALL-ACCESS-PANEL-DOUBLE-GASKET

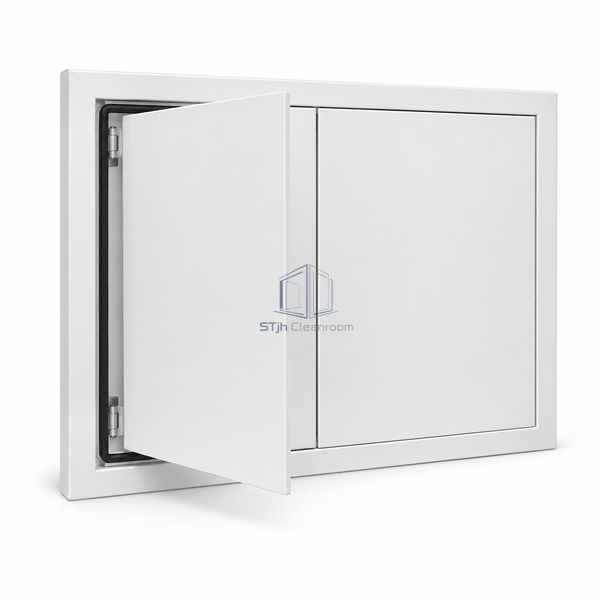

Flush Cleanroom Wall Access Panel Double-Door Gasketed
Twin gasketed leaves expose a broad wall-service opening.
- Two leaves divide the opening into manageable door sections.
- Rear plates provide a continuous surface for the perimeter sealing arrangement.
- Removable leaves clear the access route for larger maintenance tasks.
Product Introduction
A pair of steel access leaves sits within a folded electrogalvanized frame. Rubber gasketing runs around the frame and closes against rear door plates. The concealed hinges are adjustable and the leaves can be removed, providing greater working access behind a finished cleanroom wall.
Key Features
- Two leaves divide the opening into manageable door sections.
- Rear plates provide a continuous surface for the perimeter sealing arrangement.
- Removable leaves clear the access route for larger maintenance tasks.
Technical Parameters
| Door Configuration | Double leaf |
|---|---|
| Frame Material | Electrogalvanized mild steel |
| Frame Thickness | 1.2 mm |
| Door Skin Thickness | 0.9 mm |
| Perimeter Seal | Full rubber gasket |
| Door Back | Rear plate |
| Hinge Type | Concealed and adjustable |
| Leaf Removal | Removable doors |
| Surface Finish | White powder coating, RAL 9010 option |
| Customization | Available for the wall construction and required service access. |
Applications
- Large concealed service banks in cleanroom partitions
- Wall access points requiring removable doors for equipment maintenance
Solutions for Your Application
A hinged leaf obstructs removal of a component from the wall void.
The removable hinge arrangement allows the door to be taken away from the opening.
Available Options
- Picture-frame or beaded-frame surround
- Cleanroom coating options
- Frame adaptation for sandwich-panel walls
Planning a Flush Cleanroom Wall Access Panel Double-Door Gasketed specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
