A catch-only door may be opened unintentionally during routine activity.
The budget lock requires a deliberate release before the leaf can swing.
STJH-FLUSH-CLEANROOM-WALL-ACCESS-PANEL-BUDGET-LOCK

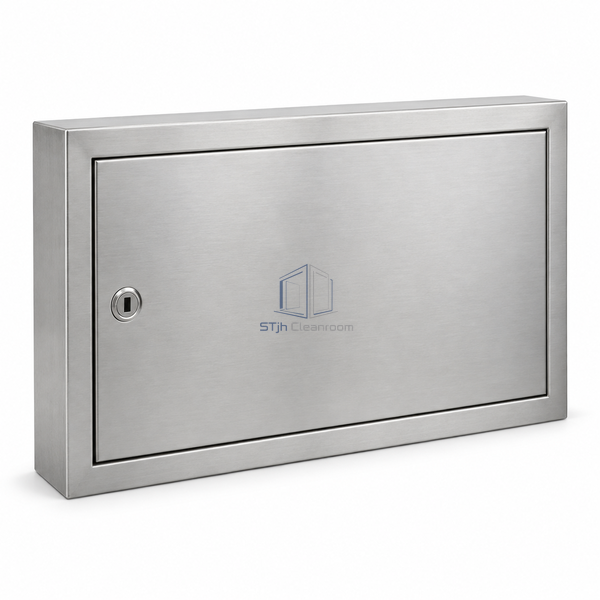

Flush Cleanroom Wall Access Panel Budget-Lock Stainless Steel
Budget-lock retention gives a service opening a deliberate release action.
- A lock-operated latch distinguishes scheduled maintenance access from a simple catch opening.
- The wider standard frame accommodates tools around the serviced component.
- Polished stainless construction avoids a painted door surface.
Product Introduction
The stainless door is secured by a budget lock within a flush access-panel frame. Its satin face meets the wall through a tight perimeter joint, and the fully concealed hinge can be handed to either side. The configuration suits service points that should remain closed between maintenance visits.
Key Features
- A lock-operated latch distinguishes scheduled maintenance access from a simple catch opening.
- The wider standard frame accommodates tools around the serviced component.
- Polished stainless construction avoids a painted door surface.
Technical Parameters
| Door Material | 304 or 316 stainless steel |
|---|---|
| Selected Standard Unit | 600 x 400 mm, width x height |
| Compact Unit Option | 400 x 325 mm, width x height |
| Frame Depth | 45 mm |
| Sheet Thickness | 2 or 3 mm options |
| Finish | Satin, 320-grit polished |
| Retention | Budget lock |
| Hinge Handing | Left or right, fully concealed |
| Opening Travel | 90 degrees |
| Customization | Available to suit service access and the operating environment. |
Applications
- Cleanroom utility openings opened during planned maintenance
- Stainless wall service doors requiring lock-operated retention
Solutions for Your Application
Nearby equipment restricts the door swing on one side.
The hinge handing can be selected to open toward the available clearance.
Available Options
- Compact or wide standard frame
- Stainless grade selection
- 2 mm or 3 mm sheet construction
Planning a Flush Cleanroom Wall Access Panel Budget-Lock Stainless Steel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
