A fully clear opening may be too visually prominent in the partition.
Tinted panes soften the appearance while preserving a viewing area.

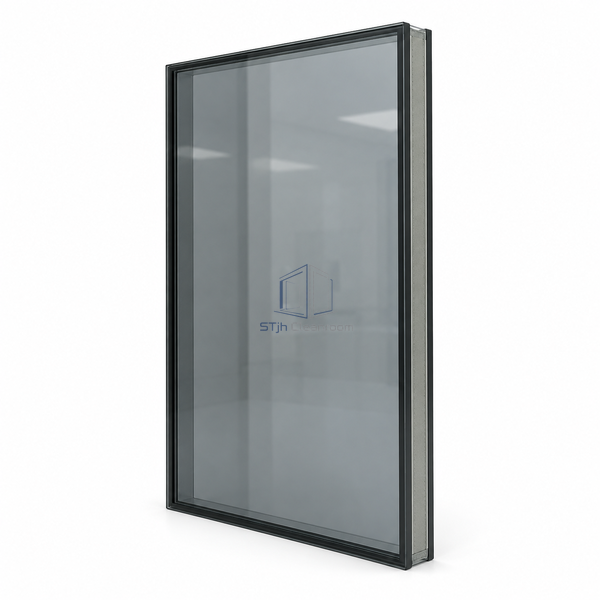

STJH-FLUSH-CLEANROOM-VISION-PANEL-50-TINTED
Flush Cleanroom Vision Panel 50 mm Tinted Toughened
Tinted glazing moderates the visual connection across a cleanroom window.
- Tint is part of the glazing specification rather than an exposed hanging screen.
- A consistent glazed perimeter supports a tidy junction with opaque panels.
- The paired-pane construction maintains the same depth through the opening.
Product Introduction
This tinted version uses paired toughened panes around a CPVC frame to create a 50 mm flush vision unit. The glazing retains an observation opening while adding a subdued tint across the full face. Its assembled perimeter includes desiccant and fits into the wall as one piece.
Key Features
- Tint is part of the glazing specification rather than an exposed hanging screen.
- A consistent glazed perimeter supports a tidy junction with opaque panels.
- The paired-pane construction maintains the same depth through the opening.
Technical Parameters
| Assembly Depth | 50 mm |
|---|---|
| Pane Thickness | 6 mm each |
| Glazing Finish | Tinted toughened glass on both sides |
| Perimeter Frame | CPVC |
| Maximum Unit Dimensions | 2400 x 2000 mm |
| Unit Construction | One-piece double glazing |
| Face Position | Flush |
| Size Tolerance | +3 / -0 mm |
| Internal Moisture Control | Desiccant incorporated in the frame |
| Customization | Available for the viewing area and desired glazing appearance. |
Applications
- Viewing openings where a subdued glass appearance is preferred
- Cleanroom partitions adjacent to brightly lit observation corridors
Solutions for Your Application
Applied roomside shading introduces edges that collect dirt.
The tint is supplied with the glass, leaving a continuous exposed face.
Available Options
- Tint selection
- Custom vision-panel width and height
Planning a Flush Cleanroom Vision Panel 50 mm Tinted Toughened specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
