Blind slats interrupt the view even when tilted open.
The smart glass provides a clear state without an integral slat array.
STJH-FLUSH-CLEANROOM-VISION-PANEL-50-PRIVACY

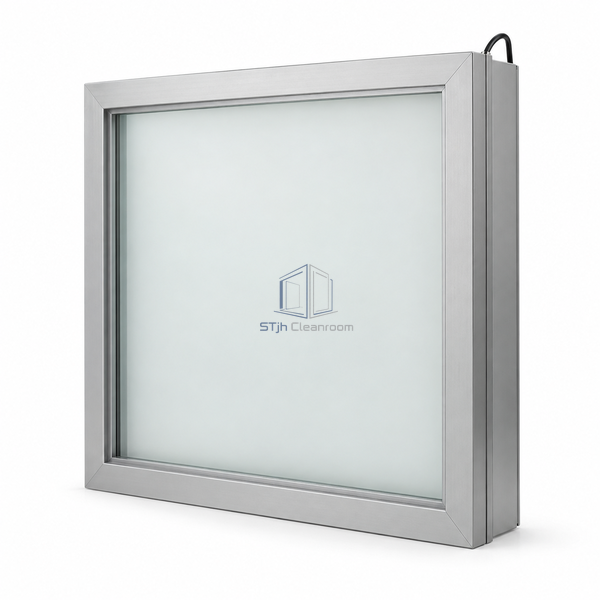

Flush Cleanroom Vision Panel 50 mm Switchable-Privacy
Switchable privacy glass changes an observation opening from clear to opaque.
- A uniform opaque state screens the view without moving blind components.
- Concealed edge integration keeps the glass face free from operating hardware.
- The framed unit can sit above an opaque lower partition panel.
Product Introduction
An 8 mm smart-glass option is integrated into a 50 mm flush double-glazed vision assembly. Profiled aluminum framing surrounds the glazing, with interlocking edge connections to the neighboring panels. Electrical switching changes visibility without installing slats across the opening.
Key Features
- A uniform opaque state screens the view without moving blind components.
- Concealed edge integration keeps the glass face free from operating hardware.
- The framed unit can sit above an opaque lower partition panel.
Technical Parameters
| Panel Thickness | 50 mm |
|---|---|
| Smart Glass Thickness | 8 mm |
| Privacy Operation | Electrically switched clear or opaque |
| Maximum Width | 1200 mm |
| Maximum Height | 2500 mm |
| Frame Material | Profiled aluminum |
| Joint Tube Size | 15 x 15 mm |
| Moisture Management | Internal desiccant strip |
| Mounting Format | Above a partition panel or on a recessed base track |
| Customization | Available for the viewing dimensions and intended privacy control. |
Applications
- Laboratory observation openings needing instant screening
- Process rooms with alternating visible and private work stages
Solutions for Your Application
A large glazed unit needs a repeatable connection to adjacent wall modules.
Profiled edges connect through a joint tube within the partition system.
Available Options
- Standard width and height combinations
- Recessed base track
- Electrical switching controls
Planning a Flush Cleanroom Vision Panel 50 mm Switchable-Privacy specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
