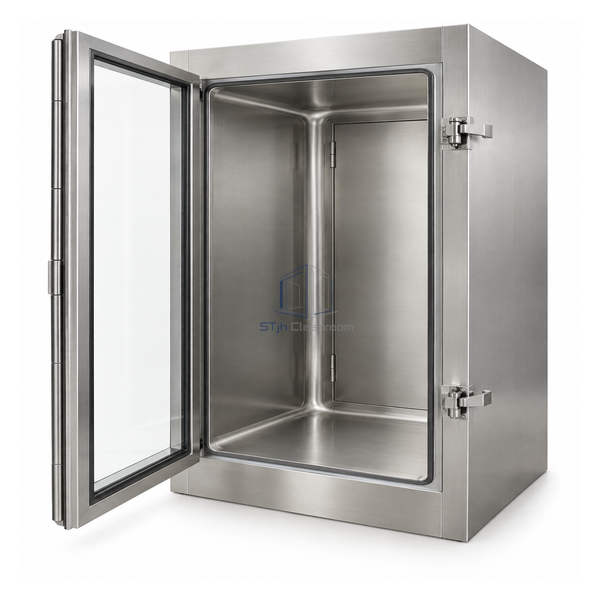

STjh fully welded floor-standing stainless pass box with seamless coved chamber, integrated floor and compression doors

STJH-FLOOR-STANDING-PASS-BOX-FULLY-WELDED

Floor-Standing Cleanroom Pass Box Fully Welded

A fully welded floor-standing transfer chamber for aseptic cart routes where internal seam reduction and repeatable sanitation take priority.

Fully welded stainless enclosure
Aseptic-cleaning priority
Integrated or open-floor configuration

Request a Quote Browse Products

Product Introduction

This version replaces the standard formed and stitch-welded cabinet body with a fully welded stainless enclosure. Compression-latched doors provide controlled access, while the floor may be integrated or omitted according to the final hygiene and cart-handling design. It targets pharmaceutical and aseptic processes that value fewer internal joints more than the active airflow supplied by the HEPA model.

Key Features

Reduced internal seams

Continuous welded construction limits crevices that complicate visual inspection and sanitation.

Floor strategy by process

An integrated cleanable floor or a threshold-free cart path can be selected to match the transfer method.

Compression door sealing

Over-center latches draw the door against its gasket for repeatable closure around a large access opening.

Technical Parameters

Installation Type	Floor-standing
Body Construction	Fully welded stainless steel
Interior Finish	Seam-minimized cleanable stainless surface
Floor Configuration	Integrated floor or open-floor design
Door Type	Opposed hinged stainless doors
Door Closure	Compression latches
Door Seal	Compressible cleanroom gasket
Transfer Method	Large parts or wheeled carts
Filtration	Passive base configuration; active filtration is a separate design choice
Customization	Available based on the intended application and operating environment.

Applications

For aseptic pharmaceutical carts, sanitized process assemblies and large sterile-supply loads crossing a partition. Procurement should decide whether a continuous cleanable floor or direct roll-through route better supports the site's sanitation method, cart wheels and spill-control plan.

Solutions for Your Application

Stitch-welded panels and exposed joints create extra surfaces to inspect during aseptic cleaning.Choose the fully welded body to reduce internal seams and establish a more continuous wipe-down surface.

An integrated floor improves containment but can obstruct small cart casters.Select the floor configuration from the actual hygiene risk and cart geometry rather than assuming one base design fits both needs.

Available Options

Specify 304 or 316 stainless steel, interior finish, floor configuration, opening size, windows and interlock. Define weld finishing, cleaning chemistry, drain or spill expectations and maximum rolling load before fabrication.
