STJH-FLAT-PANEL-PREFILTER-COARSE75

Flat Panel Pre-Filter 610 mm ISO Coarse 75%

The highest-arrestance flat panel in the family, built around a 20 mm washable mat for heavier coarse dust.

610 × 610 mm full module
20 mm washable filter mat
1300 m3/h nominal airflow

Request a Quote Browse Products

Product Introduction

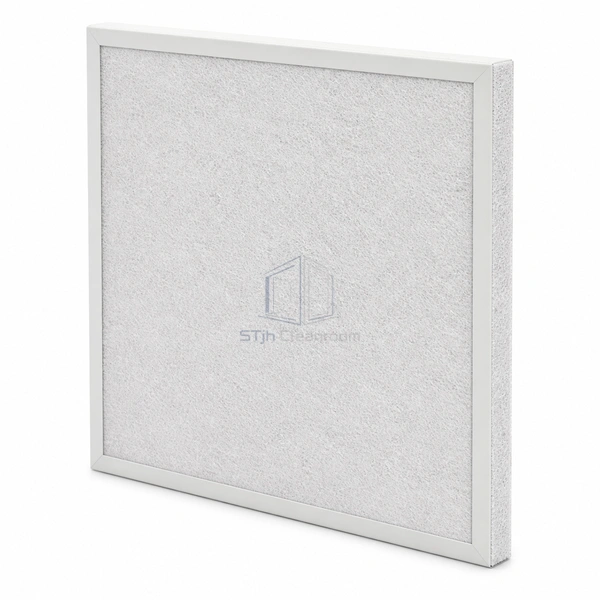

This full-size 610 × 610 mm panel incorporates a 20 mm polyolefin mat to deliver ISO Coarse 75% performance without a pleated cartridge. At the published 1300 m3/h nominal airflow, the assembled panel starts at 35 Pa. Its greater media depth makes it the appropriate flat-panel choice where downstream filters need stronger protection from coarse contamination.

Key Features

Highest flat-panel arrestance

The 20 mm medium provides the most substantial coarse-dust barrier among the three unpleated panel models.

Documented module duty

The 610 mm panel is paired with a published 1300 m3/h airflow and 35 Pa initial resistance.

Downstream filter protection

Improved large-particle removal can extend the useful loading interval of finer secondary filters.

Technical Parameters

Panel Dimensions	610 × 610 mm
Media Type	Washable polyolefin synthetic mat
Media Thickness	20 mm
Efficiency Class	ISO Coarse 75%
Nominal Airflow	1300 m3/h
Initial Panel Pressure Drop	35 Pa
Filter Geometry	Full-size flat panel
Primary Function	Heavy coarse-dust prefiltration
Service Approach	Remove, clean, dry and reinstall when condition permits
Customization	Available based on the intended application and operating environment.

Applications

Designed for outside-air and process-air intakes with noticeable lint or coarse dust, including clean manufacturing support areas and upstream stages protecting fine or HEPA filters. The full module is useful where a standard 610 mm rack is already installed.

Solutions for Your Application

Coarse loading shortens the life of expensive downstream filters.Use the ISO Coarse 75% panel as the accessible first stage to intercept more large particles.

A higher-arrestance pre-filter could exceed the available fan pressure.Evaluate the 35 Pa clean-panel resistance together with the system's loaded-filter allowance before selection.

Available Options

Confirm rack dimensions, airflow direction, frame construction and cleaning access; nonstandard finished sizes may be specified for compatible housings.

Planning a Flat Panel Pre-Filter 610 mm ISO Coarse 75% specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
