STJH-FIRE-RATED-ROCK-WOOL-CLEANROOM-PANEL-GIFRAME-75

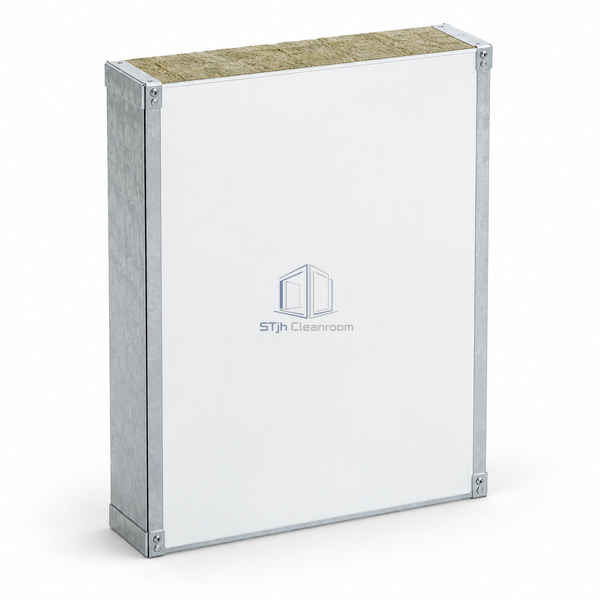

Fire-Rated Rock Wool Cleanroom Panel 75 mm Steel-Framed Fire-Resistant

Medium-depth mineral sandwich enclosed by a galvanized steel frame.

Defined perimeter keeps the module boundary rigid.
Two connection routes suit different assembly systems.

Request a Quote Browse Products

Product Introduction

Formed perimeter members retain the panel skins and rock-wool center. Corner connections complete the frame, while the wall can use a continuous joint or separate aluminum connecting components.

Key Features

Defined perimeter keeps the module boundary rigid.
Two connection routes suit different assembly systems.

Technical Parameters

Core Material	Rock wool mineral fiber
Panel Thickness	75 mm
Available Widths	980, 1160, 1180 or 1200 mm
Maximum Length	10000 mm
Facing Thickness	0.5–1.0 mm
Frame Material	Galvanized steel
Frame Thickness	0.8 mm
Corner Stock Thickness	1.0 mm
Joint Type	Continuous or aluminum-profile connection
Customization	Available to suit the intended application and operating environment.

Applications

Framed laboratory room boundaries
Medium-depth modular mineral walls

Solutions for Your Application

The connecting system must match the surrounding modular wall.

The panel can use continuous edges or separate aluminum connectors.

Mineral infill needs protection along all module edges.

Galvanized perimeter members enclose the sandwich boundary.

Available Options

Wall width selection
Facing thickness selection

Planning a Fire-Rated Rock Wool Cleanroom Panel 75 mm Steel-Framed Fire-Resistant specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
