STJH-FIRE-RATED-ROCK-WOOL-CLEANROOM-PANEL-GIFRAME-55

Fire-Rated Rock Wool Cleanroom Panel 55 mm Steel-Framed Fire-Resistant

Compact mineral-filled wall module with galvanized perimeter reinforcement.

Metal corner pieces strengthen the frame junctions.
Mineral infill remains enclosed by the panel skins.

Request a Quote Browse Products

Product Introduction

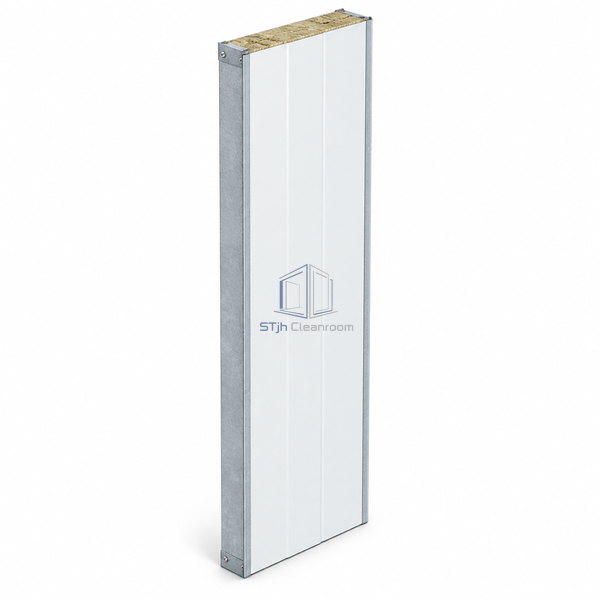

Rock wool occupies the space between the exterior sheets. Galvanized frame stock closes the module edges, and thicker corner pieces join the perimeter into a defined rectangular assembly.

Key Features

Metal corner pieces strengthen the frame junctions.
Mineral infill remains enclosed by the panel skins.

Technical Parameters

Core Material	Rock wool
Panel Thickness	55 mm
Available Widths	980, 1160, 1180 or 1200 mm
Maximum Length	10000 mm
Facing Thickness	0.5–1.0 mm
Frame Material	Galvanized steel
Frame Thickness	0.8 mm
Corner Stock Thickness	1.0 mm
Joint Type	Aluminum connector or continuous joint
Customization	Available for the intended application and operating environment.

Applications

Compact mineral-core partition walls
Steel-framed cleanroom wall systems

Solutions for Your Application

Thin panel edges are vulnerable at their corner junctions.

Separate thicker corner stock connects the galvanized perimeter.

A wall system requires a 55 mm section rather than a standard thin module.

This configuration uses the specified intermediate shallow depth.

Available Options

Continuous joint version
Aluminum connector version

Planning a Fire-Rated Rock Wool Cleanroom Panel 55 mm Steel-Framed Fire-Resistant specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
