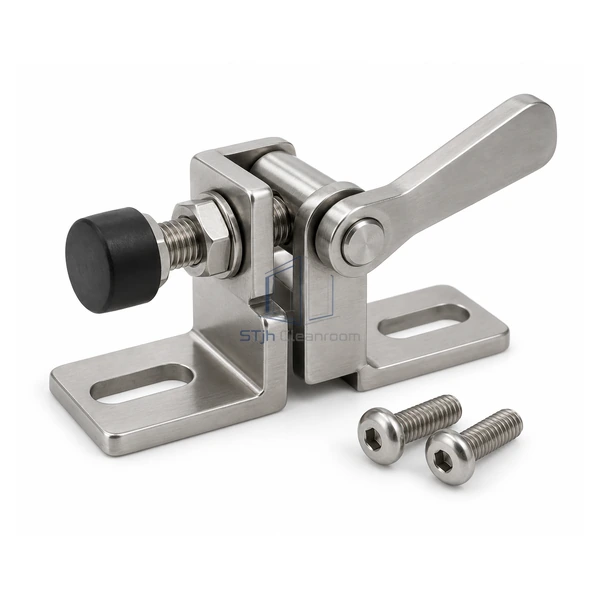

STJH-FILTER-CLAMP-ASSEMBLY-PIVOT-LIMIT

Equal-Pressure Filter Clamping Assembly Compression-Limited Pivot

A quick-release terminal clamp that limits seating travel to protect the filter gasket or knife-edge interface.

Built-in compression limiter
Room-side pivot action
PU gasket or knife-edge interface

Request a Quote Browse Products

Product Introduction

This room-side clamp pivots clear for filter removal and includes a travel limiter that prevents excessive compression during reinstallation. It can be configured around a PU gasket or a knife-edge terminal-filter interface in a welded ceiling housing. Unlike the 700 lb row crank, the mechanism acts locally around a terminal panel and prioritizes controlled seating and fast below-ceiling service.

Key Features

Over-compression protection

The limiter stops clamp travel before a soft gasket or filter frame is crushed beyond its intended range.

Clear service opening

Pivoting retainers move away from the filter edge for unobstructed room-side withdrawal.

Terminal housing fit

Compact clamp geometry works inside welded ceiling boxes where a long side-access linkage is impractical.

Technical Parameters

Mechanism	Pivoting room-side clamp
Control Feature	Compression limiter
Compatible Interface	PU gasket or knife-edge terminal filter
Housing Type	Welded ceiling terminal
Service Method	Room-side quick release
Clamp Location	Distributed around filter perimeter
Primary Function	Controlled filter seating
Adjustment	Matched to selected filter profile
Inspection Item	Pivot wear and limiter engagement
Customization	Available based on the intended application and operating environment.

Applications

For pharmaceutical and controlled-environment terminal housings requiring quick room-side replacement without overloading the filter seal.

Solutions for Your Application

A technician overtightens the filter and permanently deforms the PU gasket.Set the compression limiter for the selected gasket thickness and do not substitute a different filter profile without recalibration.

A pivot remains partly open after service and releases one edge of the filter.Use a perimeter close-out check and clearly visible loaded-position indication for every clamp.

Available Options

Confirm filter frame profile, seal type, allowable compression, clamp quantity, retainer material, ceiling box and room-side tool requirements.

Planning a Equal-Pressure Filter Clamping Assembly Compression-Limited Pivot specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
