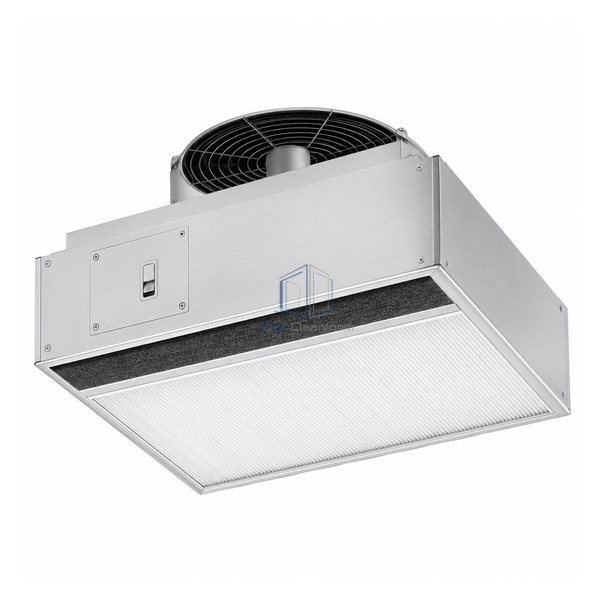

STjh fan-powered H13 HEPA ceiling module with compact room-side latches and washable prefilter

STJH-FAN-POWERED-HEPA-MODULE-H13

Fan-Powered HEPA Ceiling Module H13

A self-powered H13 ceiling terminal with room-side maintenance and variable fan output.

H13 HEPA final filter
50-100% variable speed
Room-side service

Request a Quote Browse Products

Product Introduction

This fan-powered ceiling module combines an H13 HEPA final filter and variable-speed fan in a corrosion-resistant aluminium housing. Output can be adjusted from 50% to 100%, while room-side service avoids dependence on a walkable plenum. It is positioned for laboratories and medical-device rooms that need a self-contained terminal rather than an unpowered ducted housing.

Key Features

Self-powered terminal

The integrated fan establishes local filtered airflow without relying solely on central duct pressure.

Accessible maintenance

Room-side service supports ceilings where access above the module is restricted.

Adjustable clean-air duty

The 50-100% speed range allows balancing as filter resistance and room demand change.

Technical Parameters

Final Filter	H13 HEPA
Airflow Control	50-100% variable speed
Housing Material	Aluminium
Service Access	Room side
Fan Arrangement	Integrated fan-powered terminal
Airflow Direction	Vertical filtered supply
Mounting	Cleanroom ceiling terminal
Control Location	Room-side or connected speed control
Application Duty	Laboratory and medical-device clean-air supply
Customization	Available based on the intended application and operating environment.

Applications

Suitable for laboratories, medical-device production rooms and compact clean spaces requiring an independently powered HEPA ceiling outlet. Ceiling sealing and return-air capacity remain part of the installed performance.

Solutions for Your Application

The central air system cannot provide stable pressure at a remote terminal.Use the integrated fan and set its output within the supported variable-speed range.

There is no routine maintenance path above the ceiling.Select the room-side service configuration and preserve clear access below the module.

Available Options

Confirm module size, electrical supply, controller, H13 seal, diffuser and room-side access. Fan output should be commissioned with the installed filter.

Planning a Fan-Powered HEPA Ceiling Module H13 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
