STJH-EXTERNAL-ROUNDED-CLEANROOM-CORNER-R60

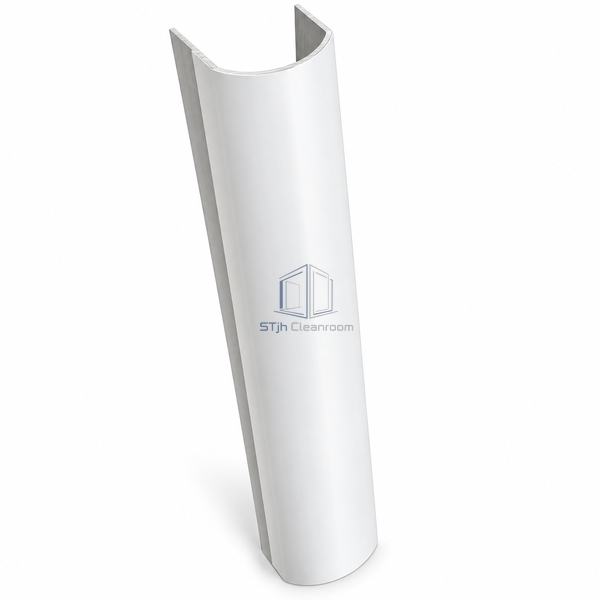

External Rounded Cleanroom Corner Profile R60 Vertical Edge

A large-radius aluminum member for vertical 90-degree cleanroom outside edges.

The 60 mm outer radius makes a generous external transition.
Vertical orientation follows full wall-height junctions.
The section is intended for a 90-degree outside wall connection.

Request a Quote Browse Products

Product Introduction

The R60 section integrates a rounded exterior into modular partition junctions. Anodized or painted aluminum provides the exposed face, and the vertical member coordinates with the wall-edge assembly rather than functioning as an adhesive flat guard.

Key Features

The 60 mm outer radius makes a generous external transition.
Vertical orientation follows full wall-height junctions.
The section is intended for a 90-degree outside wall connection.

Technical Parameters

External Radius	60 mm
Corner Angle	90 degrees
Profile Material	Aluminum
Orientation	Vertical
Edge Type	External rounded
Finish Options	Anodized or prepainted
System Role	Modular partition junction
Member Form	Linear extrusion
Length Selection	Wall-height cut length
Customization	Available to suit the intended application and operating environment.

Applications

Full-height cleanroom outer corners
Large-radius modular wall junctions

Solutions for Your Application

The outside wall edge needs a generous curve rather than a narrow trim.

The R60 member provides the larger specified radius.

Surface-mounted guards introduce a separate overlaid edge.

This member forms part of the modular junction assembly.

Available Options

Anodized finish
Prepainted finish

Planning a External Rounded Cleanroom Corner Profile R60 Vertical Edge specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
