A large corner cover would interfere with adjacent fittings.
The small R25 envelope provides a tighter external transition.

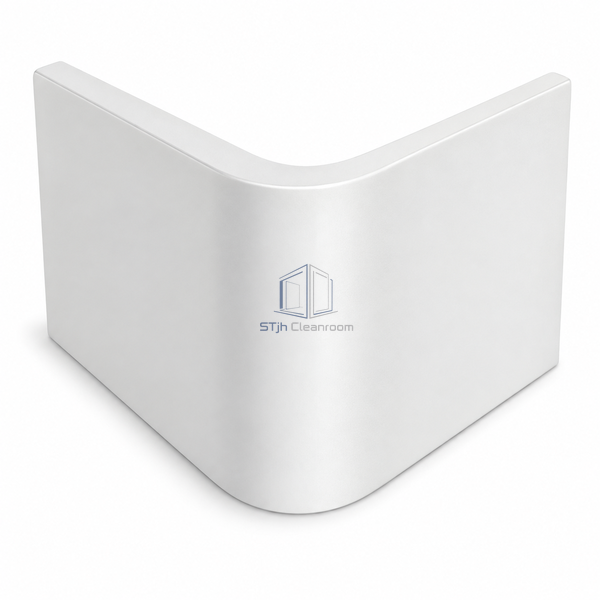

STJH-EXTERNAL-ROUNDED-CLEANROOM-CORNER-R25
External Rounded Cleanroom Corner Profile R25 Convex
A compact convex R25 trim for exposed cleanroom outside corners.
- The convex face softens a projecting wall edge.
- A 25 mm radius suits compact outside returns.
- The continuous curved section avoids a site-shaped outer arc.
Product Introduction
The aluminum section rounds a projecting edge with a 25 mm outer arc. Unlike an internal cove, the visible surface curves outward, retaining a relatively tight corner envelope where a large radius would occupy too much space.
Key Features
- The convex face softens a projecting wall edge.
- A 25 mm radius suits compact outside returns.
- The continuous curved section avoids a site-shaped outer arc.
Technical Parameters
| Outer Radius | 25 mm |
|---|---|
| Material | Aluminum |
| Curvature | Convex |
| Corner Position | External |
| Section Purpose | Outside-edge finish |
| Product Form | Linear profile |
| Manufacture | Extruded section |
| Surface Option | Anodized or powder coated |
| Length Option | Cut-to-length |
| Customization | Available for the intended application and operating environment. |
Applications
- Small projecting cleanroom wall returns
- Compact enclosure outside corners
Solutions for Your Application
A sharp outside edge is uncomfortable to contact.
The outward-curving surface replaces the exposed sharp junction.
Available Options
- Required trim lengths
- Surface finish selection
Planning a External Rounded Cleanroom Corner Profile R25 Convex specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
