STJH-EXPLOSION-RELIEF-DAMPER-350X950

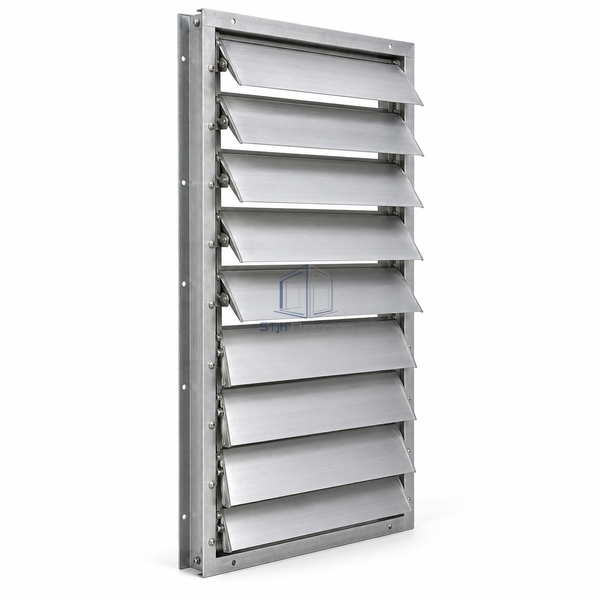

Explosion Relief Damper 350 x 950 mm Large Self-Closing

A broad relief assembly for larger machine enclosure surfaces.

The broad frame fits larger enclosure relief locations.
Self-closing lamellas avoid a permanently open lid after pressure release.

Request a Quote Browse Products

Product Introduction

The largest selected footprint extends the lamella array across a substantial rectangular opening. Its low-height leaves preserve the short opening path, while optional flame-trap and monitoring components address the surrounding machine-system arrangement.

Key Features

The broad frame fits larger enclosure relief locations.
Self-closing lamellas avoid a permanently open lid after pressure release.

Technical Parameters

Relief Opening Width	350 mm
Relief Opening Length	950 mm
Flap Height	100 mm
Maximum Opening Angle	87 degrees
Lamella Construction	Lightweight aluminum
Return Principle	Self-closing below over-centre position
Assembly Shape	Wide rectangular array
Optional Guard	Flame trap
Optional Signal	Proximity switch
Customization	Available for the intended enclosure geometry and integrated extraction system.

Applications

Large enclosed machining systems
Extensive machine-panel relief openings

Solutions for Your Application

A single tall flap sweeps into nearby equipment.

Low lamellas keep the opening motion close to the mounting surface.

The relief component is being treated as the entire protection system.

The enclosure arrangement must also integrate the appropriate extraction and fire-control provisions.

Available Options

Flame-trap assembly
Opening proximity switch
Enclosure-specific mounting details

Planning a Explosion Relief Damper 350 x 950 mm Large Self-Closing specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
