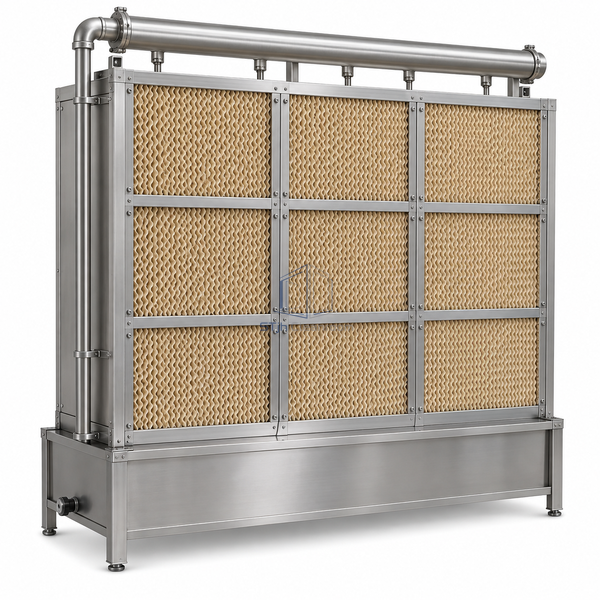

STjh 900 x 900 mm evaporative media humidifier with a larger cassette face and water distribution header on white.

STJH-EVAPORATIVE-MEDIA-HUMIDIFIER-900X900

Evaporative Media Humidifier 900 × 900 mm Standard

A 900 x 900 mm GLASdek humidifier rated for approximately 2.9 m3/s with an AISI 304 stainless frame and tank.

900 x 900 mm factory size
Approximately 2.9 m3/s
AISI 304 frame and tank

Request a Quote Browse Products

Product Introduction

The medium standard module triples the approximate airflow of the 600 mm face through a 900 x 900 mm cassette area. Its AISI 304 frame and tank support pharmaceutical and clean manufacturing AHUs requiring serviceable adiabatic humidification.

Key Features

Medium cassette area

The larger square face carries about 2.9 m3/s at the published rating.

Stainless wet structure

AISI 304 frame and tank provide durable support around the recirculating water section.

Modular media replacement

Individual GLASdek cassettes can be accessed without replacing the full structural frame.

Technical Parameters

Standard Face Size	900 x 900 mm
Rated Airflow	2.9 m3/s / 6150 CFM
Media	GLASdek evaporative cassettes
Frame and Tank	AISI 304 stainless steel
Efficiency Selection	Multiple media depths available
Water Distribution	Top-fed recirculating system
Treatment	Adiabatic cooling and humidification
Service	Removable cassette access
Installation	Medium AHU wet section
Customization	Media depth, separator and water-control package can be configured for the intended application and operating environment.

Applications

Medium pharmaceutical AHUs, clean manufacturing supply air, healthcare ventilation and adiabatic cooling systems.

Solutions for Your Application

The 600 mm module creates excessive face velocity at the medium airflow.Use the 900 mm square cassette area for the approximately 2.9 m3/s duty.

Wet-section corrosion increases maintenance in continuous humidification service.Use the AISI 304 frame and tank with appropriate water quality and drainage routines.

Available Options

Media efficiency, stainless separator, pump configuration, conductivity control, UV or water-treatment interface, sensors and access lighting can be selected.

Planning a Evaporative Media Humidifier 900 × 900 mm Standard specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
