Can personnel see a trolley approaching the opposite side?
A window in each blade maintains sight through both halves of the entrance.
STJH-EQUAL-DOUBLE-LEAF-CLEANROOM-SWING-DOOR-1500
Equal Double-Leaf Cleanroom Swing Door 1500 mm Steel
A compact equal-leaf steel pair for cleanroom trolley passages with a 1500 mm nominal entrance.
- Equal blades provide a balanced opening arrangement.
- Paired vision lights help operators check the opposite approach.
- Retracting bottom seals avoid a fixed bar across the trolley route.
Product Introduction

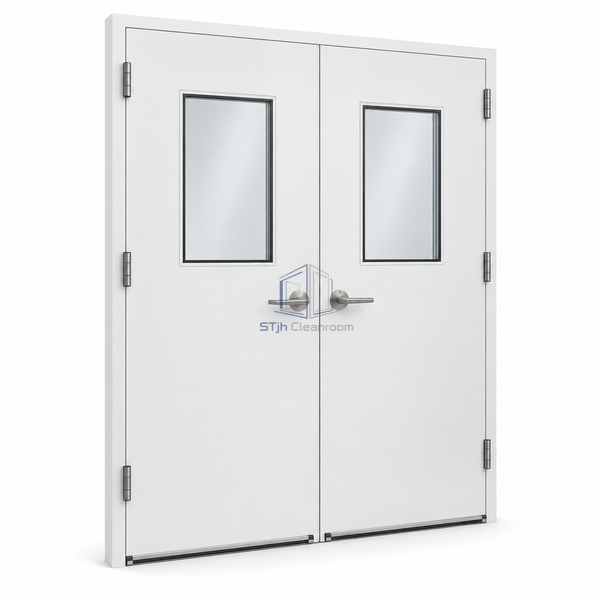

Two matching powder-coated steel leaves form this 1500 by 2100 mm nominal door set. Each 50 mm sandwich blade carries a rectangular observation window, allowing approaching traffic to be seen before either leaf moves. Stainless steel hinges and lever hardware accompany the smooth finished faces. An automatic bottom seal closes the floor gap when the door shuts, leaving the entrance free from a permanently raised sealing bar during passage.
Key Features
- Equal blades provide a balanced opening arrangement.
- Paired vision lights help operators check the opposite approach.
- Retracting bottom seals avoid a fixed bar across the trolley route.
Technical Parameters
| Nominal Size | 1500 × 2100 mm |
|---|---|
| Leaf Arrangement | Equal double leaf |
| Leaf Thickness | 50 mm |
| Facing Material | Powder-coated steel |
| Steel Facing Thickness | 0.8 mm |
| Vision Opening | 400 × 600 mm per leaf |
| Vision Glass | Two 5 mm tempered panes |
| Hinge Material | 304 stainless steel |
| Bottom Seal | Automatic drop seal |
| Customization | Available for the intended trolley route and partition installation. |
Applications
- Compact clean manufacturing trolley entrances.
- Laboratory corridors with two-way personnel movement.
Solutions for Your Application
Will a fixed threshold obstruct small cart wheels?
The drop seals retract as the leaves open, keeping the floor crossing clear.
Available Options
- Paper-honeycomb, aluminum-honeycomb or rock-wool infill.
- Overhead door closers for controlled return.
Planning a Equal Double-Leaf Cleanroom Swing Door 1500 mm Steel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
