STJH-EPS-INSULATED-CLEANROOM-PANEL-50-MACHINE

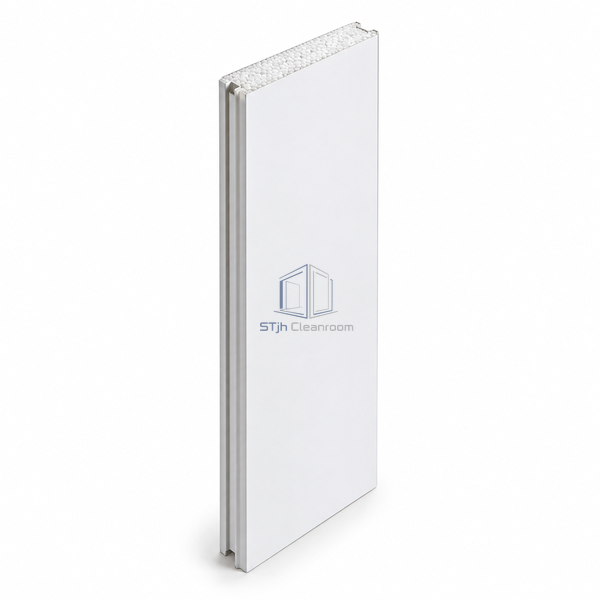

EPS Insulated Cleanroom Panel 50 mm Machine-Made

Light machine-made insulated panel for general controlled interiors.

Low-density infill eases panel handling.
Machine-made edges maintain repeatable alignment.

Request a Quote Browse Products

Product Introduction

Expanded polystyrene beads form a cellular center between thin coated steel sheets. Continuous edge forming produces an interlocking strip suited to repeated wall runs with moderate insulation requirements.

Key Features

Low-density infill eases panel handling.
Machine-made edges maintain repeatable alignment.

Technical Parameters

Core Material	Expanded polystyrene
Panel Thickness	50 mm
Effective Width	1000 or 1200 mm
Steel Facing Thickness	0.4–0.6 mm
Core Density	15–25 kg/m³
Thermal Conductivity	0.035–0.040 W/(m·K)
Manufacturing	Machine-made
Surface Finish	Coated steel
Joint Type	Continuous interlocking edge
Customization	Available for the intended application and operating environment.

Applications

General controlled-room partitions
Dry assembly support rooms

Solutions for Your Application

Heavy wall pieces are difficult to position in an existing building.

The lightweight bead-foam center reduces core mass.

Irregular connecting edges slow a repetitive run.

Machine-formed interfaces establish a consistent joint shape.

Available Options

Cover-width choice
Factory length cutting

Planning a EPS Insulated Cleanroom Panel 50 mm Machine-Made specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
