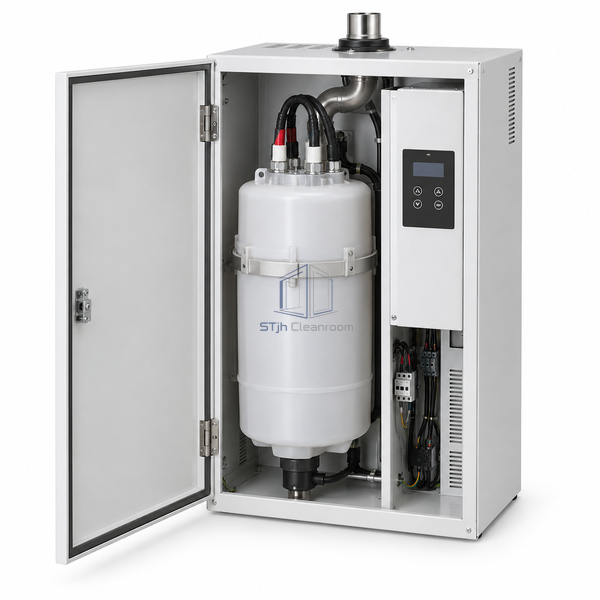

STjh 45 kg/h electrode steam humidifier with a large single cylinder and heavy electrode connections on white.

STJH-ELECTRODE-STEAM-HUMIDIFIER-45KGH

Electrode Steam Humidifier 45 kg/h

A medium single-cylinder cabinet for pharmaceutical and electronics cleanroom humidity loads.

9-45 kg/h output range
37.4 kW maximum input
Single three-phase cylinder

Request a Quote Browse Products

Product Introduction

This three-phase electrode unit modulates across a 9-45 kg/h steam range and draws up to 37.4 kW at maximum output. A larger single cylinder distinguishes it from the compact model, while avoiding the two independent circuits used by the 91 kg/h cabinet. It suits central cleanroom ducts where potable-water conductivity is compatible and where the absorption section can accept the full steam rate.

Key Features

Medium central capacity

One cabinet serves a substantial AHU humidity load without a dual-cylinder enclosure.

Continuous modulation

Electronic fill, drain and power control varies steam production with the demand signal.

Replaceable cylinder service

Mineral accumulation is managed through automatic drain cycles and planned cylinder replacement.

Technical Parameters

Steam Output	9-45 kg/h
Maximum Input	37.4 kW
Steam Cylinders	1
Electrical Phase	3
Heating Principle	Electrode boiling
Feed Water	Conductive potable water within product limits
Control	Modulating demand
Distribution	Duct steam manifold by selection
Primary Duty	Medium cleanroom humidification
Customization	Available based on the intended application and operating environment.

Applications

For medium pharmaceutical suites, electronics cleanrooms and controlled production AHUs requiring central isothermal humidification.

Solutions for Your Application

Water mineral content causes rapid cylinder filling and short service life.Set drain behavior for the measured conductivity and monitor operating hours and cylinder current.

The duct manifold cannot absorb 45 kg/h within the available straight length.Select the dispersion assembly and multiple-tube arrangement from the calculated non-wetting distance.

Available Options

Specify voltage, output limit, water conditions, cylinder, control input, steam distributor, absorption distance, drain and alarm integration.

Planning a Electrode Steam Humidifier 45 kg/h specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
