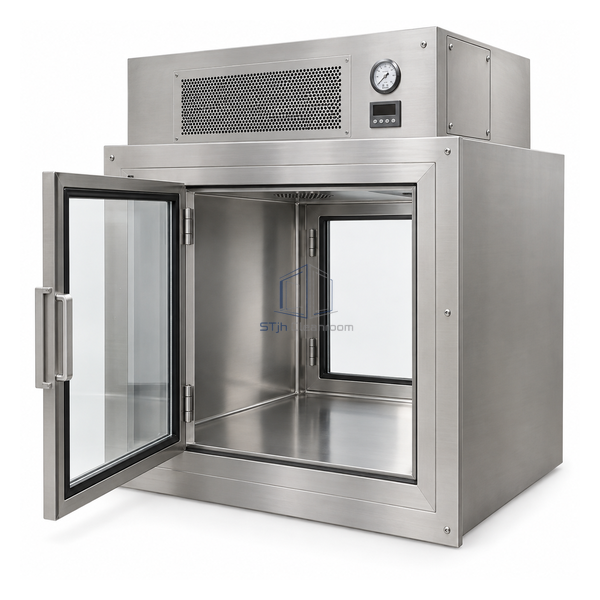

STjh medium 24 by 26 by 24 inch dynamic ULPA stainless pass box with flush flange and wide top filtration plenum

STJH-DYNAMIC-PASS-BOX-24X26X24-ULPA

Dynamic ULPA Pass Box 24 × 26 × 24 in

A medium flush-wall ULPA pass box for controlled transfer of trays and component batches.

24 x 26 x 24 in work zone
Self-contained ULPA recirculation
Flush wall mounting

Request a Quote Browse Products

Product Introduction

The 24 x 26 x 24 in interior provides a deeper transfer shelf than the compact HEPA model and uses self-contained ULPA recirculation for more demanding particle control. Flush wall mounting reduces projections into the clean space, while 304 or 316L stainless construction can be matched to cleaning chemistry. Service access for the fan and filter must remain available after wall integration.

Key Features

Deeper tray accommodation

The 26 in depth supports larger process carriers while preserving a two-foot nominal opening.

Fine-particle filtration option

ULPA media serves transfers that specify a higher removal class than the compact HEPA configuration.

Clean-side flush fit

The installation can align the cabinet face with the finished partition to reduce room obstructions.

Technical Parameters

Inside Dimensions	24 W x 26 D x 24 H in
Filtration	Self-contained recirculating ULPA
Chamber Material	304 or 316L stainless steel
Mounting Position	Flush wall
Door Count	2 opposing doors
Interlock	Electronic controlled sequence
Airflow Mode	Continuous or cycle-timed recirculation
Load Type	Trays and medium component batches
Service Requirement	Filter and blower access outside chamber
Customization	Available based on the intended application and operating environment.

Applications

For pharmaceutical and semiconductor material transfer where a medium tray envelope and active fine-particle cleanup are required. Verify that load height does not block the internal air path and that wall framing supports the service module.

Solutions for Your Application

A deep tray blocks return airflow and extends chamber recovery.Define load placement that preserves circulation openings and confirm recovery during commissioning.

Filter replacement would disturb the cleanroom finish.Orient the service side toward an accessible technical space before fixing the flush wall trim.

Available Options

Choose 304 or 316L chamber, interlock logic, purge timer, filter alarm and door access controls. Final ULPA grade and test method should follow the site's transfer risk assessment.

Planning a Dynamic ULPA Pass Box 24 × 26 × 24 in specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
