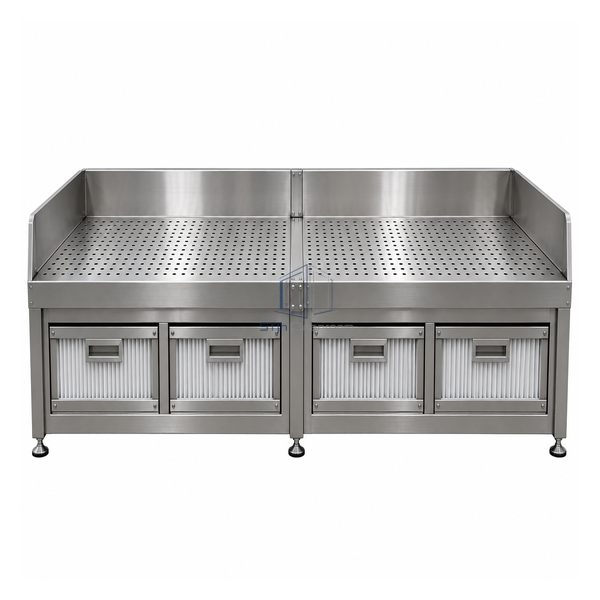

STjh 6 foot twin-module downdraft workstation with continuous stainless surface and center transition connector

STJH-DUST-EXTRACTION-WORKSTATION-6FT-TWIN

Dust Extraction Workstation 6 ft Twin-Module

A connected six-foot downdraft surface for long dusty workpieces, oversized evidence and extended processing.

Two connected 3 ft modules
Continuous 6 ft stainless surface
Distributed twin-blower capture

Request a Quote Browse Products

Product Introduction

Two three-foot downdraft modules join with a transition connector to create a continuous six-foot stainless working surface. Each module retains its own blower, prefilter, HEPA exhaust and airflow alarm, providing distributed capture beneath long components. The modular build offers more width than a single station while allowing separate service of each half.

Key Features

Long-workpiece support

The joined surface keeps oversized evidence or components above active downdraft zones.

Secure module transition

A dedicated connector aligns the stations and closes the gap between worktops.

Independent service sections

Each three-foot module retains separate filter and blower components.

Technical Parameters

Combined Width	6 ft
Module Arrangement	Two 3 ft stations
Connector	Transition connector
Airflow Direction	Distributed downdraft
Work Surface	Continuous perforated 304 stainless steel
Blowers	Two built-in module fans
Prefilters	MERV 8
Exhaust Filters	Two HEPA stages, 99.99% at 0.3 µm
Access	Open top and sides
Customization	Available based on the intended application and operating environment.

Applications

For oversized evidence, long components and extended dusty bench operations. Balance and verify both modules so the transition area does not become a weak capture zone.

Solutions for Your Application

Long workpieces extend beyond a single downdraft surface.Join two three-foot modules beneath the complete dusty operation.

A gap between benches releases powder at the center.Use the transition connector to create a secured continuous work surface.

Available Options

Select electrical supply, bench height and additional linked modules. Individual module alarms and service access should remain unobstructed.

Planning a Dust Extraction Workstation 6 ft Twin-Module specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
