Larger handwork area
The three-foot surface accommodates broader evidence and multiple small tools.
STJH-DUST-EXTRACTION-WORKSTATION-3FT

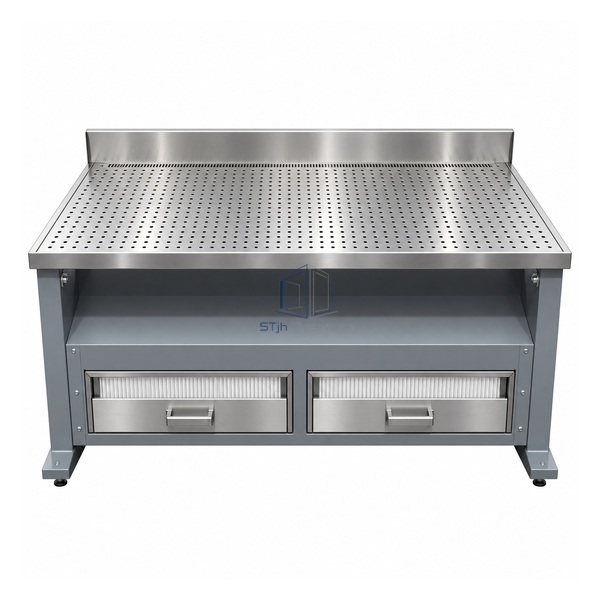

Downdraft Dust Extraction Workstation 3 ft
A medium-width downdraft surface for larger evidence, components and manual powder-handling tasks.
- 3 ft medium work width
- Low-airflow alarm light
- Open-sided HEPA downdraft
Product Introduction
The three-foot version adds usable lateral area for larger components while retaining open-top and open-side access. Its built-in blower draws through the perforated 304 stainless surface, a MERV 8 prefilter and a 99.99% HEPA filter. A red low-airflow alarm alerts the operator when capture performance falls outside the operating condition.
Key Features
Airflow warning
A red alarm light provides a visible indication of low capture airflow.
Cleanable stainless surface
The perforated worktop and catch pan can be accessed for routine powder cleanup.
Technical Parameters
| Nominal Width | 3 ft |
|---|---|
| Airflow Direction | Downdraft |
| Work Surface | Perforated 304 stainless steel |
| Housing | Powder-coated steel |
| Blower | Built-in motorized fan |
| Prefilter | MERV 8 |
| Exhaust Filter | HEPA, 99.99% at 0.3 µm |
| Alarm | Visible low-airflow indicator |
| Access | Open top and sides |
| Customization | Available based on the intended application and operating environment. |
Applications
For medium evidence processing, dusty inspection and manual powder work that needs unrestricted side access. Keep solid objects away from the active perforations.
Solutions for Your Application
Available Options
Choose domestic or international power and support-bench height. A connector permits future pairing with another three-foot module.
Planning a Downdraft Dust Extraction Workstation 3 ft specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
