Duct Airflow Measuring Station 600 x 600 mm Differential-Pressure

Medium square sensing station for airflow trends and control-system feedback.

Broader sampling coverage suits medium duct sections.
Remote control integration supports fan-speed supervision.

Request a Quote Browse Products

Product Introduction

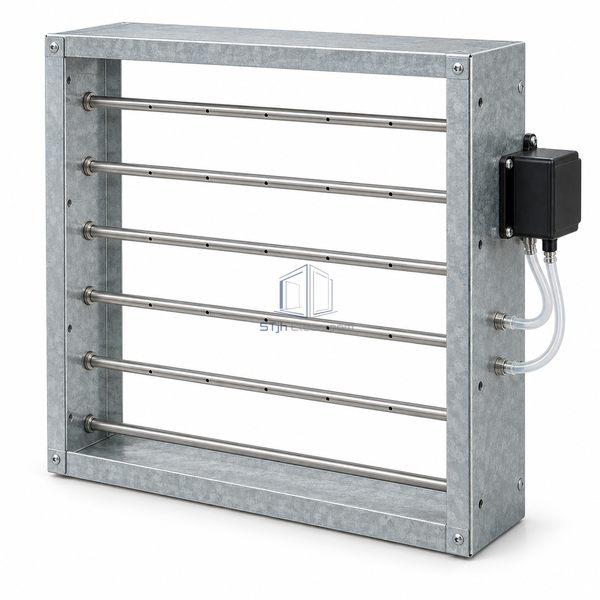

The 600 mm square frame carries a broader multi-point pressure array than a compact branch station. A matched pressure transducer sends an analog measurement to the controller, where the station relationship is used to calculate flow.

Key Features

Broader sampling coverage suits medium duct sections.
Remote control integration supports fan-speed supervision.

Technical Parameters

Nominal Opening	600 x 600 mm
Duct Cross-Section	0.360 m²
Sensor Type	Multi-point pressure averaging
Measurement Method	Total-to-static differential pressure
Signal Range	0 to 10 VDC
Signal Meaning	Proportional to pressure
Airflow Conversion	Controller calculation using station coefficient
Control Use	Monitoring or VFD feedback
Mounting	Rectangular duct section
Customization	Sensing and control arrangements can suit the intended air system.

Applications

Medium AHU supply-duct monitoring
Outdoor-air flow supervision

Solutions for Your Application

Fan control needs measured airflow rather than an estimated damper position.

The station supplies a measured pressure input for the controller's airflow calculation.

Available Options

Airflow alarm integration
Factory-matched transducer range
