STJH-DOUBLE-MGO-ROCK-WOOL-CLEANROOM-PANEL-75-FRAMED

Double MgO Rock Wool Cleanroom Panel 75 mm Four-Side Framed

Framed double-board mineral sandwich for individually fabricated wall modules.

Closed edge framing protects panel corners.
Double mineral liners back both room surfaces.

Request a Quote Browse Products

Product Introduction

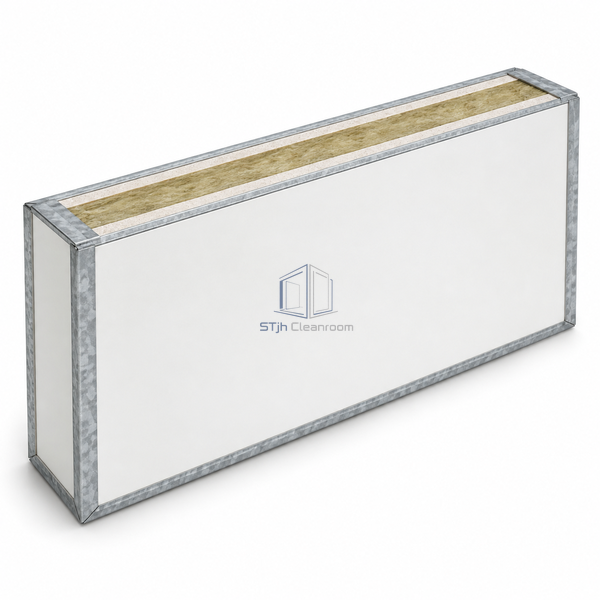

The rock-wool center is supported by MgO sheets on its two broad sides. Galvanized perimeter members enclose this 75 mm assembly, accommodating a modular panel shape rather than a continuous cut strip.

Key Features

Closed edge framing protects panel corners.
Double mineral liners back both room surfaces.

Technical Parameters

Core Material	Rock wool and double MgO
Panel Thickness	75 mm
Effective Width	980 or 1180 mm
Maximum Length	6000 mm for walls
Steel Facing Thickness	0.4–0.8 mm
Core Density	100–120 kg/m³
Frame Material	Galvanized steel
Surface Finish	Coated steel
Joint Type	Framed modular panel connection
Customization	Available to suit the application and operating environment.

Applications

Custom wall modules
Partitions around equipment openings

Solutions for Your Application

Opening edges interrupt a continuous panel system.

Individual framed modules allow boundaries to be fabricated around the required opening.

Corner damage can expose the mineral core.

Metal perimeter closures shield the vulnerable edges.

Available Options

Prepared opening modules
Choice of facing gauge

Planning a Double MgO Rock Wool Cleanroom Panel 75 mm Four-Side Framed specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
