STJH-DOUBLE-MGO-ROCK-WOOL-CLEANROOM-PANEL-50-MACHINE

Double MgO Rock Wool Cleanroom Panel 50 mm Machine-Made

Continuous-line panel with mineral-board reinforcement beneath both metal faces.

Smooth coated metal provides an accessible surface for routine wiping.
Tongue-and-groove edges locate adjacent panels during assembly.

Request a Quote Browse Products

Product Introduction

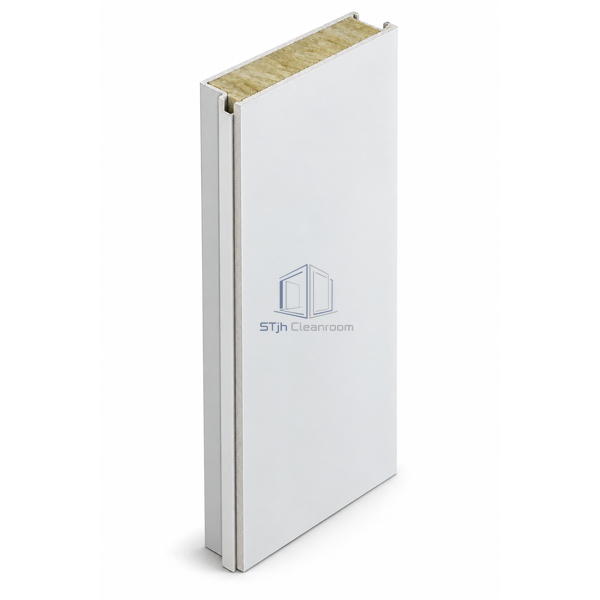

The five-layer section places rock wool between two MgO boards and outer steel skins. Heat, pressure and curing consolidate these materials on a continuous production line into a finished partition component.

Key Features

Smooth coated metal provides an accessible surface for routine wiping.
Tongue-and-groove edges locate adjacent panels during assembly.

Technical Parameters

Core Material	Rock wool with two MgO liners
Panel Thickness	50 mm
Effective Width	950 or 1150 mm
Facing Thickness	0.3–0.6 mm
Core Density	100–140 kg/m³ rock wool
MgO Liner Thickness	Approximately 5 mm each
Manufacturing	Machine-made continuous panel
Surface Finish	Color-coated steel
Joint Type	Tongue-and-groove
Customization	Available for the intended application and operating environment.

Applications

Repetitive clean partition runs
Two-sided service corridors

Solutions for Your Application

Stock-length panels would require extensive trimming at the wall head.

Factory-cut lengths can follow the required partition height.

A fixed sheet gauge limits the choice of metal skin for different rooms.

Facings are available from 0.3 to 0.6 mm while retaining the double-MgO construction.

Available Options

Alternative facing gauge
Factory length cutting

Planning a Double MgO Rock Wool Cleanroom Panel 50 mm Machine-Made specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
