STJH-DOUBLE-MGO-ROCK-WOOL-CLEANROOM-PANEL-100-HEAVY

Double MgO Rock Wool Cleanroom Panel 100 mm Heavy

Deep handcrafted sandwich with two rigid mineral liners and enclosed edges.

Rigid liners isolate the fibrous infill from both skins.
Handcrafted format accommodates defined module dimensions.

Request a Quote Browse Products

Product Introduction

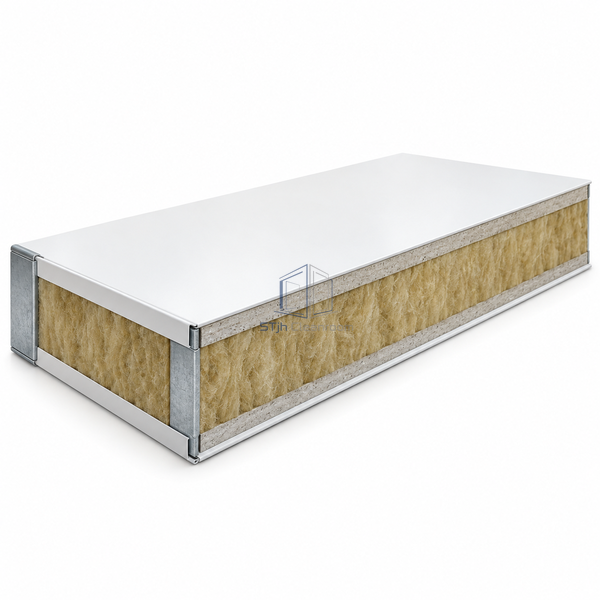

A thick rock-wool center separates the MgO backing sheets. The assembly uses metal perimeter closures to retain the layered section and connect it to adjacent cleanroom panels.

Key Features

Rigid liners isolate the fibrous infill from both skins.
Handcrafted format accommodates defined module dimensions.

Technical Parameters

Core Material	Rock wool with double MgO boards
Panel Thickness	100 mm
Effective Width	980 or 1180 mm
Maximum Length	3000 mm ceiling; 6000 mm wall
Steel Facing Thickness	0.4–0.8 mm
Core Density	100–120 kg/m³
MgO Board Thickness	Approximately 5 mm per side
Surface Finish	Coated steel
Joint Type	Galvanized-edge modular joint
Customization	Available based on the intended application and operating environment.

Applications

Deep cleanroom partitions
Mineral-lined ceiling modules

Solutions for Your Application

A deep sandwich needs its internal layers kept in registration.

Factory bonding and perimeter closures retain the full layered section.

Wall-length pieces may be unsuitable overhead.

Ceiling modules use a 3000 mm fabrication length limit.

Available Options

Wall or ceiling format
Prepared equipment apertures
