A smaller standard window leaves an awkward infill strip.
Use the 1280 mm unit where that width is specified in the wall module.
STJH-DOUBLE-GLAZED-CLEANROOM-WINDOW-1280X1000-SILICONE

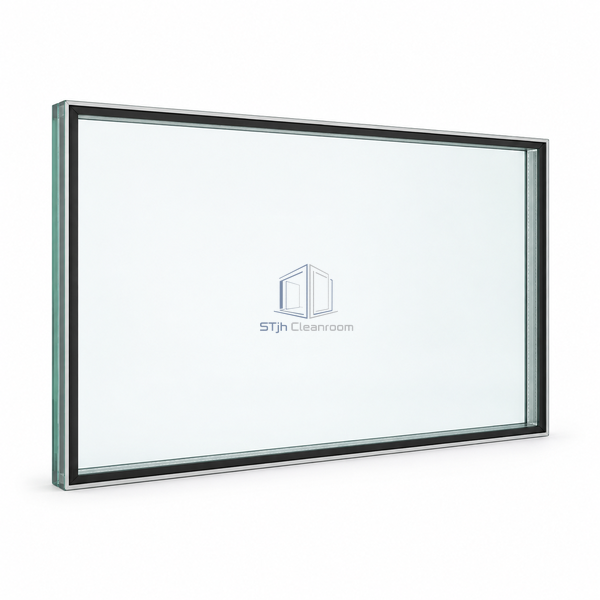

Double-Glazed Cleanroom Window 1280 x 1000 mm Wide-Module
A 1280 mm-wide flush glazing module for larger cleanroom observation openings.
- The 1280 mm span matches a distinct wider module.
- Double glass separates the two room-facing surfaces.
- An internally dried cavity avoids exposed moisture-control accessories.
Product Introduction
This standard-width module extends the viewing opening to 1280 mm while retaining a height of 1000 mm. Its paired safety-glass faces enclose an internally dried cavity, with silicone sealing around the unit perimeter. The module depth follows the surrounding panel, keeping the observation surface aligned on both sides. It addresses a specific wider wall opening rather than substituting a nearly fitting smaller window. The distinction is the actual frame span and glazing width, which should remain consistent through the wall schedule and installation opening.
Key Features
- The 1280 mm span matches a distinct wider module.
- Double glass separates the two room-facing surfaces.
- An internally dried cavity avoids exposed moisture-control accessories.
Technical Parameters
| Overall Module Width | 1280 mm |
|---|---|
| Overall Module Height | 1000 mm |
| Window Format | Landscape |
| Glazing Construction | Double safety glass |
| Partition Integration | Flush on both faces |
| Depth Selection | Equal to panel thickness |
| Perimeter Sealant | Silicone |
| Cavity Profile | Microperforated |
| Drying Element | Internal desiccant |
| Customization | Available for the wall module and intended viewing requirements. |
Applications
- Wider modular production-room observation
- Partition bays scheduled for 1280 mm glazing
Solutions for Your Application
A broad window could be treated as an openable unit.
This is a fixed sealed observation assembly; ventilation belongs to a separate system.
Available Options
- Panel-depth matching
- Nonstandard overall dimensions
- Perimeter joint finish
Planning a Double-Glazed Cleanroom Window 1280 x 1000 mm Wide-Module specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
