A square window limits lateral visibility.
This model adds horizontal width while retaining a 1000 mm height.
STJH-DOUBLE-GLAZED-CLEANROOM-WINDOW-1200X1000-SILICONE

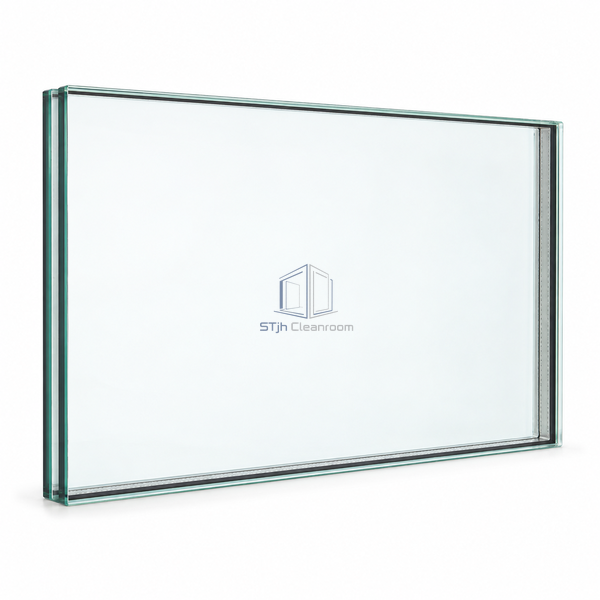

Double-Glazed Cleanroom Window 1200 x 1000 mm Landscape
A 1200 x 1000 mm landscape viewing module with double safety glazing and a sealed dry cavity.
- The 1.2:1 outline favors horizontal sightlines.
- A fixed assembly avoids opening hardware within the viewing area.
- Panel-depth matching supports a flush finish on both sides.
Product Introduction
The modest landscape proportion expands the horizontal viewing area while keeping the same one-meter height as the square module. Two safety-glass panes sit across a partition-matched depth, with a microperforated spacer and desiccant inside the cavity. Silicone completes the perimeter seal to the surrounding cleanroom panel. This fixed unit is useful where an observer needs to see a wider section of a workstation without opening the partition. Its installed depth should follow the actual wall rather than leaving one glass face recessed.
Key Features
- The 1.2:1 outline favors horizontal sightlines.
- A fixed assembly avoids opening hardware within the viewing area.
- Panel-depth matching supports a flush finish on both sides.
Technical Parameters
| Module Width | 1200 mm |
|---|---|
| Module Height | 1000 mm |
| Aspect Ratio | 1.2:1 |
| Glass Type | Safety glass |
| Glazing Layers | Two panes |
| Edge Seal | Silicone |
| Internal Profile | Microperforated spacer |
| Moisture Control | Desiccant inside cavity |
| Mounting Plane | Flush to both wall faces |
| Customization | Available for the observation task and partition construction. |
Applications
- Viewing a section of a production bench
- Landscape observation openings in laboratory partitions
Solutions for Your Application
The frame depth could leave a cleaning ledge.
Match the unit depth to the partition so the two panes finish at the wall surfaces.
Available Options
- Wall-depth adaptation
- Made-to-measure dimensions
- Silicone perimeter detailing
Planning a Double-Glazed Cleanroom Window 1200 x 1000 mm Landscape specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
