STJH-DEMOUNTABLE-CLEANROOM-WALL-PANEL-50-NONPROGRESSIVE

Demountable Cleanroom Wall Panel 50 mm Non-Progressive

Individual demounting makes a slim wall adaptable to equipment changes.

Local panel removal provides an opening for equipment moves.
The slim partition depth preserves usable floor area.
Demountable components can serve a later room arrangement.

Request a Quote Browse Products

Product Introduction

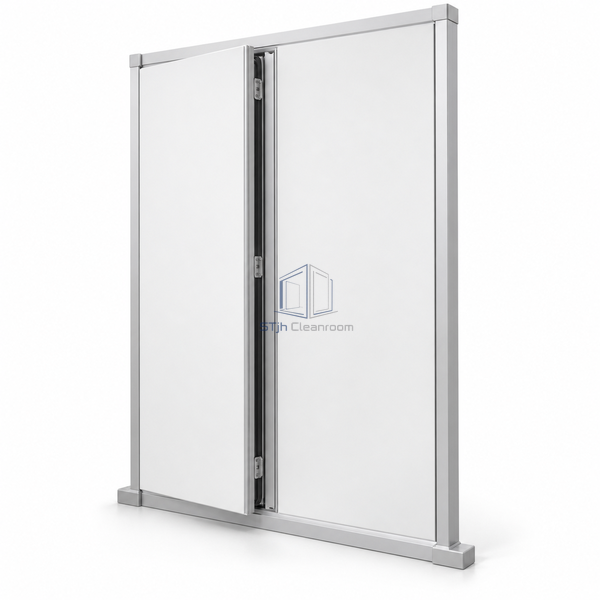

Aluminum-faced panels sit within anodized aluminum framing, with gasketed interfaces around the modular bays. Removable framing details form a non-progressive wall assembly that can integrate with existing floors, walls and ceiling systems.

Key Features

Local panel removal provides an opening for equipment moves.
The slim partition depth preserves usable floor area.
Demountable components can serve a later room arrangement.

Technical Parameters

System Thickness	50.8 mm
Frame Material	6063-T5 aluminum
Maximum Wall Height	3657.6 mm
Panel Facing	Aluminum
Assembly Sequence	Non-progressive
Panel Surface Finish	Epoxy roll coat
Joint Seal	Gasketed interface
Frame Finish	Anodized aluminum
Support Position	Floor-supported or ceiling-supported
Customization	Available for the room layout and anticipated access requirements.

Applications

Reconfigurable cleanroom production bays
Hospital renovation partitions with planned equipment access

Solutions for Your Application

Equipment projects through the proposed partition line.

Use the framing system's bulkhead arrangement to form a gasketed boundary around the equipment outline.

Ceiling movement could be transmitted into the partition.

A floating head-track option accommodates movement at the wall-to-ceiling junction.

Available Options

Panel height and width selection
Integrated glazed openings
Door and corner modules

Planning a Demountable Cleanroom Wall Panel 50 mm Non-Progressive specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
