STJH-CURVED-CLEANROOM-WALL-PANEL-R152-COMPOSITE

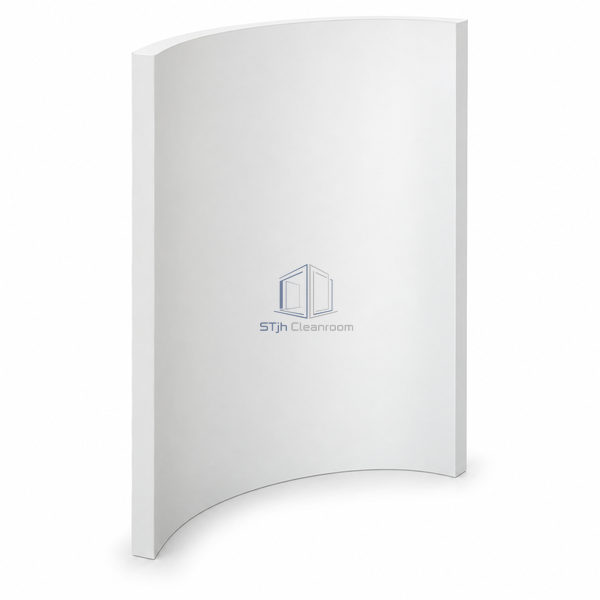

Curved Cleanroom Wall Panel 152 mm Radius Composite Corner

Medium-radius composite transition with a thicker curved substrate.

Broader curve allows a continuous wipe path.
The 15.875 mm section matches the adjoining lining thickness.
Rigid forming preserves the selected radius along the height.

Request a Quote Browse Products

Product Introduction

The 152.4 mm bend opens the corner into a broader concave face. The 15.875 mm composite substrate receives seam treatment and a continuous finish, enclosing its paper-facing layer beneath the completed wall surface.

Key Features

Broader curve allows a continuous wipe path.
The 15.875 mm section matches the adjoining lining thickness.
Rigid forming preserves the selected radius along the height.

Technical Parameters

Internal Radius	152.4 mm
External Radius	168.275 mm
Section Thickness	15.875 mm
Panel Length	2438.4 mm
Bend	90 degrees
Straight Edge Land	57.15 mm
Substrate	Composite sandwich
Facing Layer	Concave paper facing beneath finish
Finished Surface	Seam-treated and painted
Customization	Available for the actual wall junction and coating arrangement.

Applications

Broad finished cleanroom corners
Interior wall transitions with thicker lining

Solutions for Your Application

Thin corner inserts do not align with the wallboard.

The 15.875 mm section matches a 5/8-inch lining build-up.

A sharp junction interrupts surface cleaning.

A fully finished six-inch concave arc opens the corner.

Available Options

Factory-edge taper
Straight-edge joining configuration
